MBM Triumph Speedcut 56 Auto Programmable Cutter Package
MBM Triumph Speedcut 56 Auto Programmable Cutter Package is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MBM Triumph Speedcut 56 Auto Programmable Cutter Package
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | MBM Triumph Speedcut 56 Cutter |
| Manufacturer | MBM |
| SKU | CU0498 |
| Dimensions (H”xW”xD”) | 59.75 x 43.75 x 53.25 |
| Length Behind Blade (Inches) | 28 |
| Narrow Cut (Inches) | 0.59 / 2.36 |
| Cutting Width (inches) | 22 |
| Operation | Automatic Programmable |
| Type of cutter | Programmable Cutter |
| Cutting Height (Inches) | 3.14 / 3.03 |
| Blade Drive | Hydraulic |
| Paper Clamp | Fast Action Lever |
| Back Gauge Setting | Electric |
| Warranty | 1 year limited warranty |
| Country of Origin | Germany |
| Power Supply (Volts) | 120V, 60 Hz (20 Amp. Dedicated Line Required) |
| User Type | Large Office |
| Optional Accessories | Side Tables, Cutting Knives and Cutting Sticks |
| Applications | Papers Stack, Paychecks, Invoices, Tax Forms, Medical Reports, Bills, Coupons & Notices |
| Cutting Material | Paper |
| LED Laser Cut Line | Yes |
| Safety Feature | IR Light Beam Safety Curtain |
Product Description:

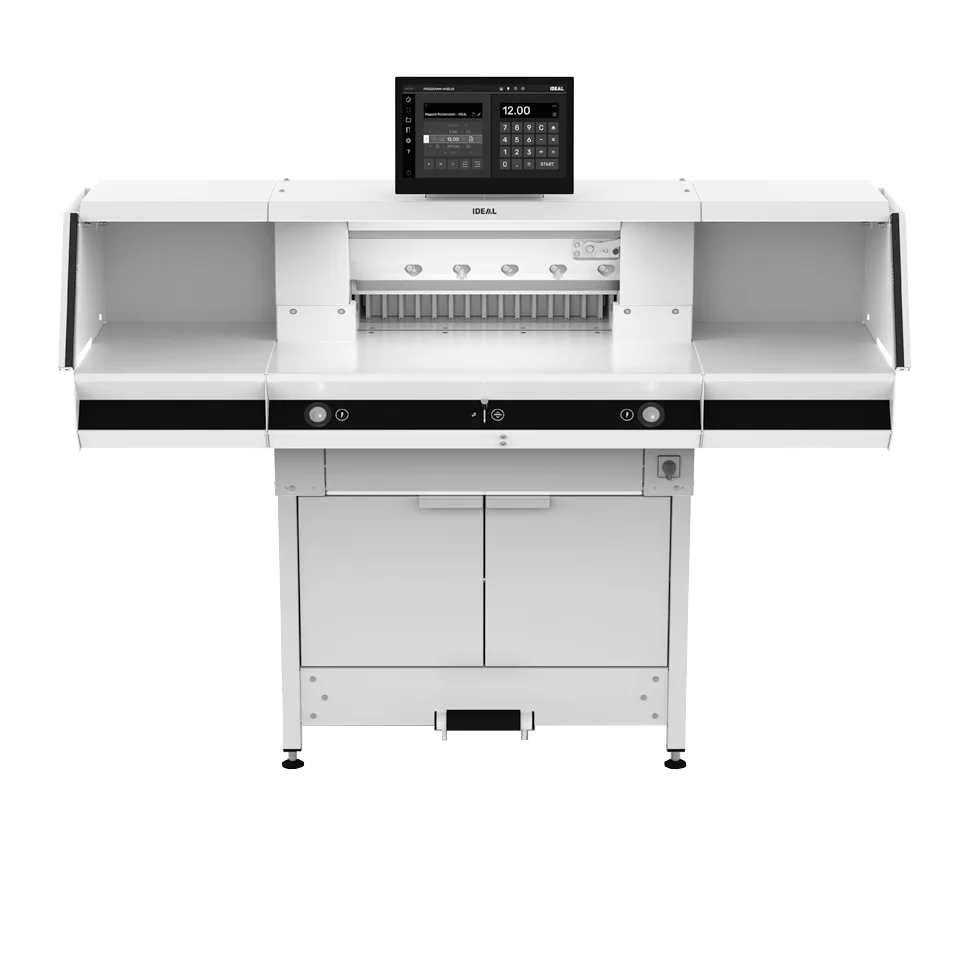

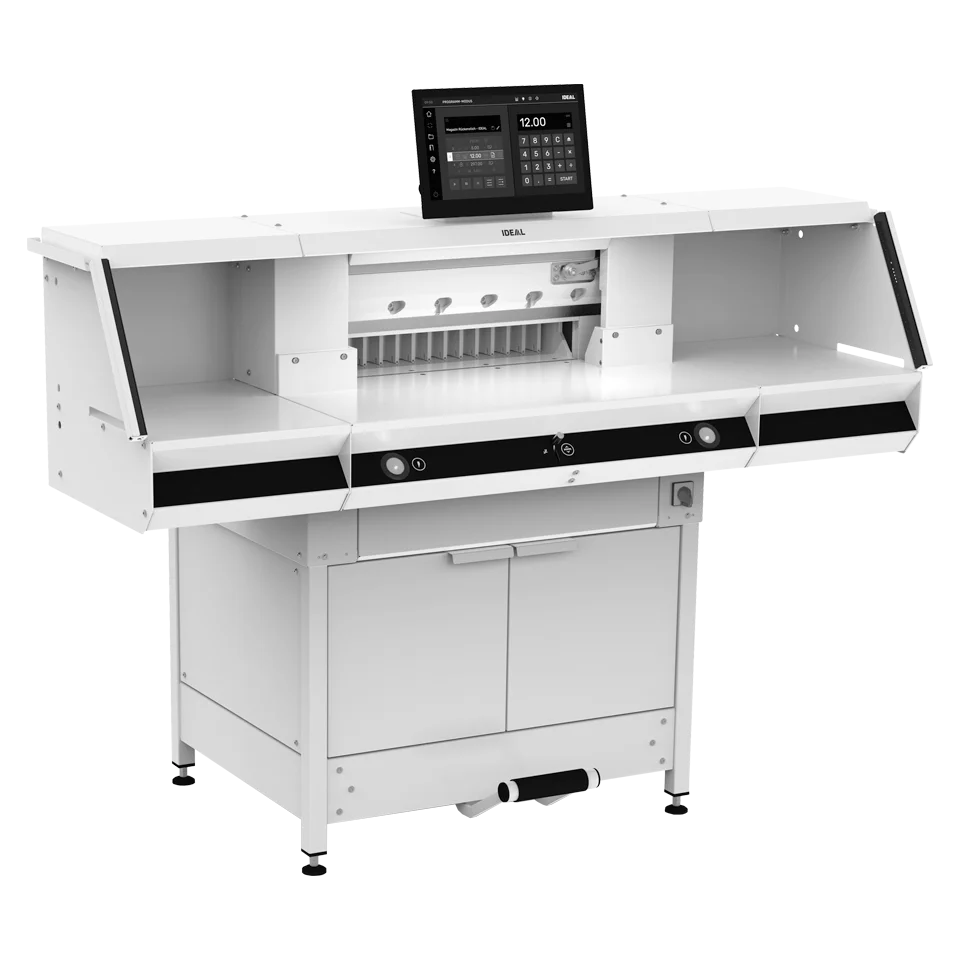

Features of Triumph Speedcut 56 Paper Cutter with Base Frame Panels
- Programmable hydraulic paper cutter with intuitive Speedcut software
- 15.6” multi-touch tilt-adjustable display with user-friendly interface
- Precision German steel blade driven by electro-mechanical mechanism
- Fast-action lever clamp with patented ergonomic pre-clamping system
- Manual fine-tune backgauge control with ergonomic dial
- IR light beam safety curtain and EASY-TOUCH dual-hand activation system
- Clamp bar with programmable pressure and cutting line indication
- Integrated tool storage and pallet jack compatible stand with shelf
- Speedcut software generates cutting programs through mark recognition
- Operates independently of templates or specific file formats
- Electronic pin-code lock and comprehensive SCS safety package
Performance of Triumph Speedcut 56 Paper Cutter

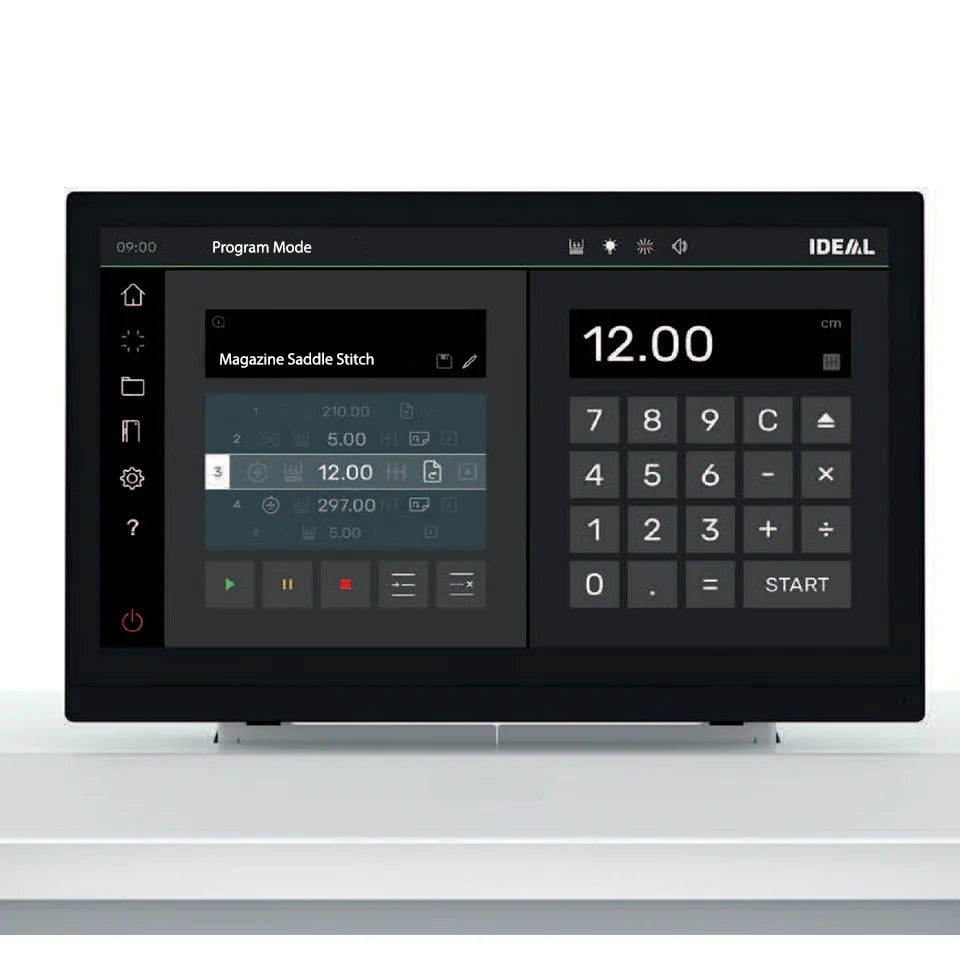

The user interface features a 15.6” tilt-adjustable multi-touch display, allowing access to key functions through intuitive icon-based navigation. Operators can manage programmable clamp pressure and utilize cutting line indicators for accurate setup. The blade depth can be adjusted with ease, and additional functions like integrated cutting stick change support ongoing operational consistency.
The Triumph Speedcut 56 features a 15.6” tilt-adjustable multi-touch display with intuitive icon-based navigation for managing programmable clamp pressure, blade depth, and cutting line indicators. Designed for demanding production environments, it includes IR beam protection, dual-hand activation, electronic pin-lock access, integrated cutting stick change, tool storage, and a pallet jack compatible base, ensuring both operational efficiency and user safety.
MBM Triumph Speedcut 56 Auto Programmable Paper Cutter Package

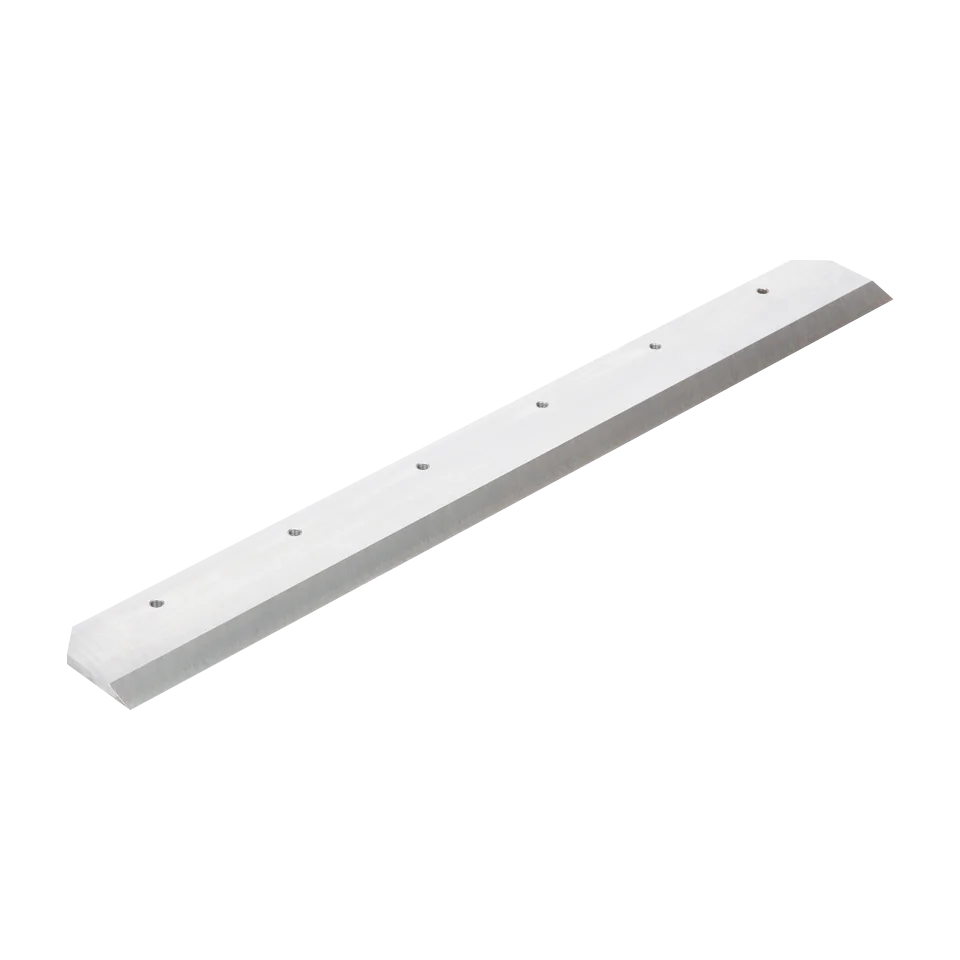

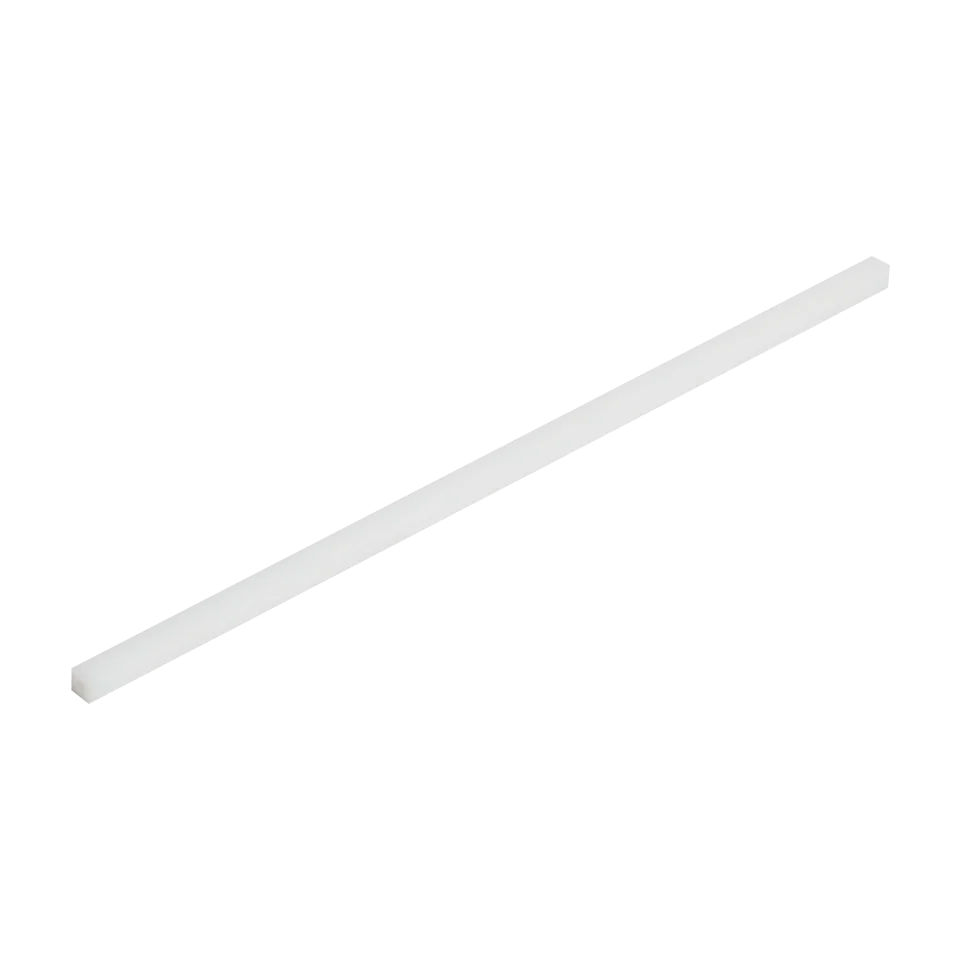

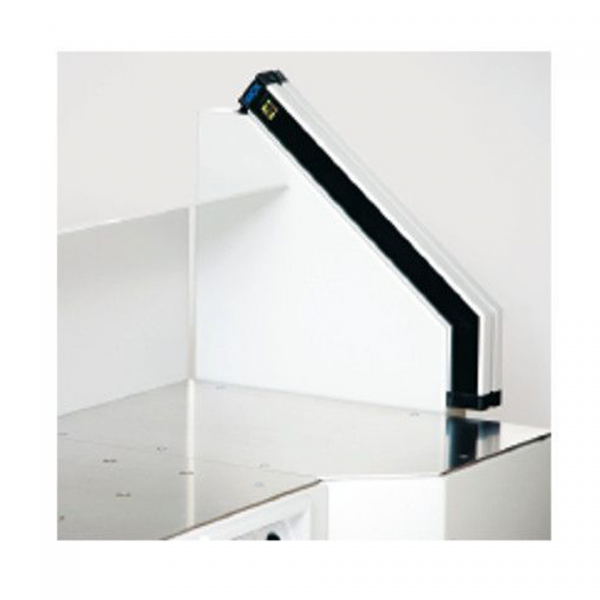

The package that come with theMBM Triumph Speedcut 56 Programmable Hydraulic Cutter. The package includes six cutting sticks (CU0699), side tables (CU0496) with increased work surface and cutting knifes (AC0654).
Warranty
Triumph Speedcut 56 paper cutter comes with a 1-year limited warranty (excluding wearables) and is designed to support high-volume, error-free workflows with maximum safety and ease of use.
Frequently Asked Questions
Q: What accessories are available for the Triumph Speedcut 56?
A: The Triumph Speedcut 56 includes compatible accessories such as side tables, a cutter knife, and a cutter stick for extended utility and maintenance support.
Q: What is the warranty period for this unit?
A: The Triumph Speedcut 56 is backed by a 1-year limited warranty, excluding wearable parts.
Q: What does the Speedcut software do in the Triumph Speedcut 56?
A: Speedcut software automates cutting program creation using advanced mark recognition technology. It operates without templates or manual programming and improves workflow efficiency by generating precise cutting instructions directly from the print layout.
Video of MBM Triumph Speedcut 56 Auto Programmable Cutter Package
