MBM  |  SKU: CU0487

MBM AeroCut Prime Complete Air Feed Digital Finisher

$49,999.00 $62,498.75
Digital Finisher System with slitter / cutter / creaser / perforator with a speed of 24 sheets/ min and 4" sheet capacity

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Sheet Capacity 4"
Speed (sheet/min) 24
Paper Size (W" x L") 8.27 x 8.27 to 14.5 x 47+
Paper Weight 120 - 400 gsm
Tri-Suction Feeding Mechanism Yes

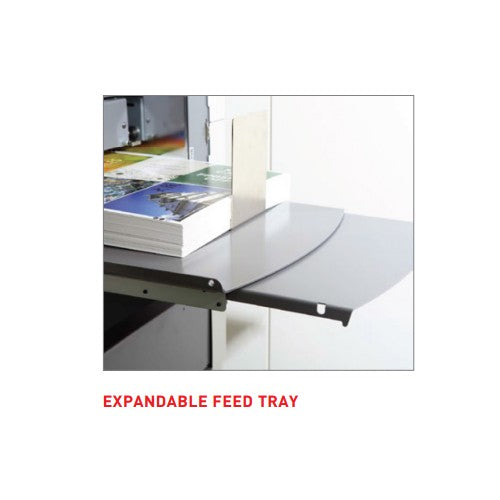

Feed Tray Capacity 26.75"
Applications Business cards, post cards, invitations, greeting cards, leaflets and tickets
Flex Mode Yes
Included Software Lytrod Intellicut Software
Optional Accessories Cross perforator, Jump perforator, Barcode reader and conveyor stacker unit
Power Supply 100 - 120 V
Weight 573 lbs
Dimensions (H”xW”xD”) 41.13 x 57.6 x 30.3
Product Description:

Features of the MBM AeroCut Prime Complete Air Feed Digital Finisher

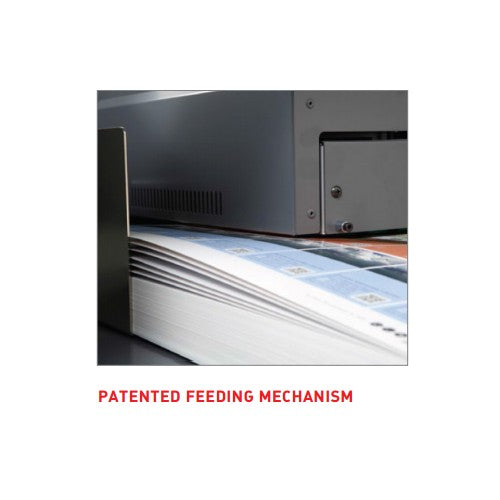

  • Air suction feed system with patented tri-suction mechanism for consistent feeding
  • Production speed of up to 24 sheets per minute, 1,440 sheets per hour
  • Handles paper weights up to 400 gsm for digital print finishing
  • 5-level adjustable creasing pressure for digital print stocks
  • Dual slitting and cutting system with self-sharpening blades

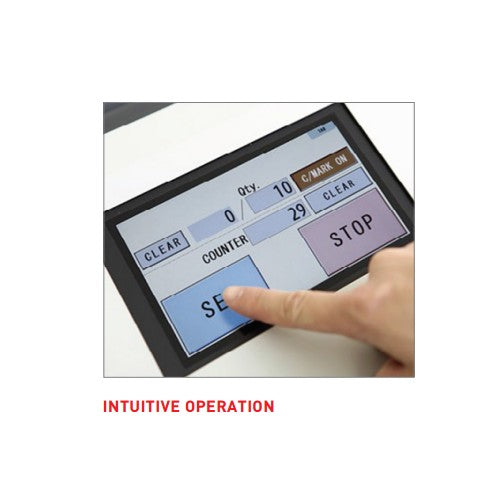

  • 7 inch touchscreen with programmable job setup and batch processing
  • Integrated cross and skip perforation with conveyor stacker

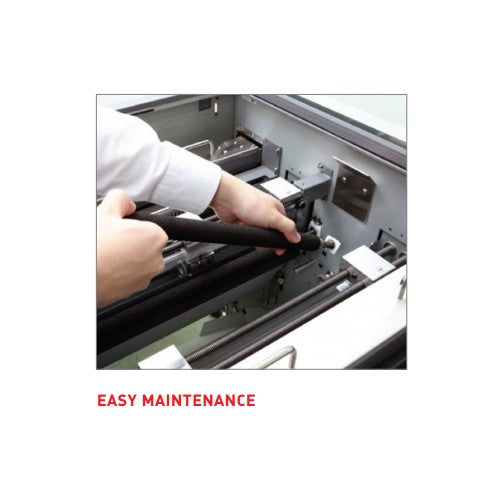

  • Safety access covers and detachable rollers for easy maintenance

Performance of the MBM AeroCut Prime Complete Air Feed Digital Finisher

The MBM AeroCut Prime Complete Air Feed Digital Finisher is designed for efficient digital print finishing in production environments handling short-run applications. Equipped with an air suction feed system and patented tri-suction feeding mechanism, the machine ensures accurate sheet feeding while reducing misfeeds and double feeds. It operates at speeds of up to 24 sheets per minute, allowing consistent output for business cards, postcards, invitations, and tickets. The system combines creasing, slitting, cutting, and perforating functions, enabling users to complete multiple finishing processes in a single pass while maintaining precise alignment.

The MBM AeroCut Prime Complete Air Feed Digital Finisher is backed with a 7 inch touchscreen interface that allows operators to configure job programs and manage batch processing efficiently. Its adjustable creasing pressure with five levels supports a wide range of digital stocks, while the dual slitting and cutting system with self-sharpening blades ensures accurate trimming of margins and gutters. Integrated features such as cross and skip perforation, conveyor stacker, and software support for job setup help streamline workflow. With safety access covers, detachable rollers for maintenance, and durable construction, the AeroCut Prime supports reliable performance in commercial print environments.

Frequently Asked Questions

Q: For how long am i entitled to warranty?

A: The AeroCut Prime digital finisher comes with a 1 year limited warranty excluding wearables.

Q: How does the Lytrod VisionDirect software assits with AeroCut Prime?

A: The Lytrod VisionDirect software promotes efficient cutting with fast and simple procedure.

Q: What does the Flex Mode do?

A: The Flex mode allows operators to cut multiple size cards from a page and add the desired number of creases.

Q: My AeroCut Prime detects double-feed mistakenly, what should i do?

A: Adjust the sensitivity of the double-feed detection sensor of your AeroCut Prime digital finisher.

Video of MBM AeroCut Prime Complete Air Feed Digital Finisher
