Formax FD 7104-Standard 3 High Volume Modular Inserter
Formax FD 7104-Standard 3 High Volume Modular Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 7104-Standard 3 High Volume Modular Inserter
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax FD 7104-Standard 3 High Volume Modular Inserter |
| Manufacturer | Formax |
| SKU | FD7104-Standard 3* |
| Dimensions (H”xW”xD”) | 36” H x 76.5” W x 18.5” D |
| Envelope Hopper Capacity (Envelopes) | 800 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4500 |
| Duty Cycle (Pieces/month) | 180,000 |
| Feed Stations w/ Sheet Capacity | 3 Standard with 500-sheet capacity feed station , from 1 to 17 sheet feeders |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 5.5 - 16 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 115V |
| Optional Accessories | Productivity Package, Various Modules (Insert Feeders, Intelligent Feeders, Feeder Folders, BRE Feeder) and Envelope Sorter/Diverter, Catch Tray, Sorter Catch Tray |
| Programmable Fold Applications | Unlimited |
| Programmable Fold Applications | Unlimited |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 3.5 - 6.48 |
| Envelope Size (H") | 6 - 10.37 |
| Max. sheet Size (W") | 5.5 - 9 |
Product Description:
Features of Formax FD 7104 Standard 3 Folder & Inserter
- Assembled with three standard feeders with 500 sheet capacity
- The processing speed accommodates 4500 finished envelopes
- Provides the flexibility to add up to 8 modules and 17 feed stations
- Automatic job setup for easy and simple usage of the device
- 22” wide color touchscreen control panel for easy and intuitive use
- Fold types of C, Half, Z, Double Parallel and no fold supported
- Powerful processing ability to fold eight sheets at once
- Mechanical document detections ensure no double document is fed
- Feeders can be linked in cascade mode for continuous operations and maximum output
- Able to store unlimited programmable jobs for frequent and instant use

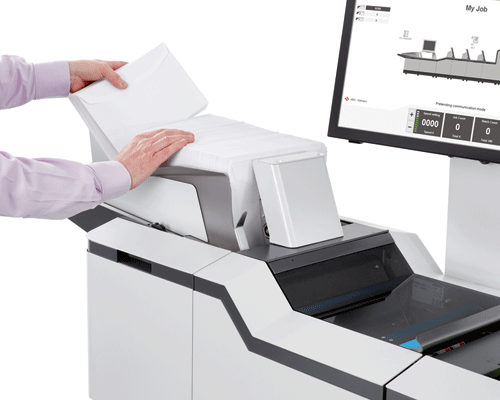

- Envelope feeder capacity of up to 800 envelopes

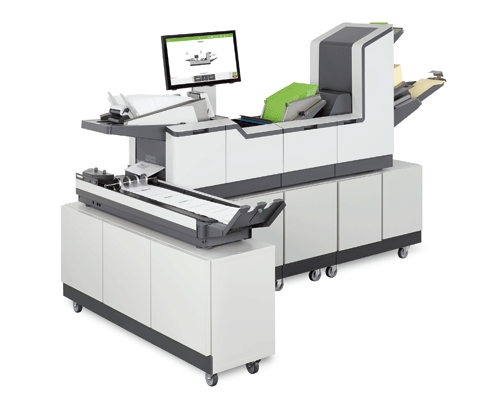

Another one of the exclusive Formax FD 7104 series include the Standard 3 inserter. The 7104 inserters are ideal for large offices as it accommodates high volume of folding, inserting and sealing jobs. Formax 7104 series allows the flexibility to add up to 8 modules and 17 feed stations as per the requirement of the customer. The 7104 Standard 3 is equipped with 3 standard feeders that have a capacity of 500 sheets each and 1500 sheets in total. The powerful processor of the machine can finish 4500 envelopes in an hour and has a monthly duty cycle of 180,000 envelopes.
The FD 7104 Standard 3 is designed with an easy to use infrastructure, it is mounted with a 22” color touchscreen control panel that is easy to use and lets you adjust your command manually. This is the best machine for recurring jobs as it stores unlimited programmable jobs for instant use. The 7104 Standard 1F supports fold types of C, Half, Z, Double Parallel and no fold and has the powerful folding capacity of 8 sheets at a time. Moreover, there are plenty other features included like double document detection, ergonomically designed cabinet on casters and high capacity output conveyor.
Recommendation & WarrantyFormax has never failed to provide the best processing capability and accuracy with the results. The 7104 standard 3 is ideal for large offices with its strong processing capability. The inserter is backed with a 90-day warranty on parts and labor ensuring customer satisfaction.
Frequently Asked Questions
Q: For how long am I entitled to warranty?
A: The Formax 7104 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: How many jobs can my 7104 series can save?
A: The 7104 series can save up to unlimited programmable jobs for frequent use.
Q: How much sealing liquid is required for 100,000 envelopes?
A: The 7104 sealing liquid of 10 liters in reservior for 100,000 envelopes.
Q: Does the 7104 series has the capability to feed glossy paper?
A: Tower Folder and Feeder Folder can feed glossy paper
