Formax  |  SKU: FD 7104-Standard 1F*

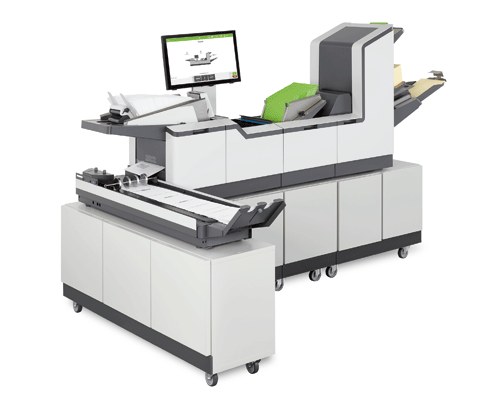

Formax FD 7104-Standard 1F High Volume Modular Inserter

$59,010.89 $64,509.58
1 High Capacity Feed Station, Process 180,000 Pieces/month, Total Feed Capacity of 1,000 sheets

Spec Sheet: View PDF File

Product Specifications
Product Name Formax FD 7104-Standard 1F High Volume Modular Inserter
Manufacturer Formax
SKU FD 7104-Standard 1F*
Dimensions (H”xW”xD”) 36” H x 76.5” W x 18.5” D
Envelope Hopper Capacity (Envelopes) 800
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4500
Duty Cycle (Pieces/month) 180,000
Feed Stations w/ Sheet Capacity One High Capacity 1,000-sheet feeder , from 1 to 17 sheet feeders
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 5.5 - 16
Warranty 90 day parts and labor
Country of Origin United States
Power Supply (Volts) 115V
Optional Accessories Productivity Package, Various Modules (Insert Feeders, Intelligent Feeders, Feeder Folders, BRE Feeder) and Envelope Sorter/Diverter, Catch Tray, Sorter Catch Tray
Programmable Fold Applications Unlimited
Programmable Fold Applications Unlimited
Fold Types C, V, Z, Double Parallel, no fold
Double Feed Detection Yes
Envelope Size (W") 3.5 - 6.48
Envelope Size (H") 6 - 10.37
Max. sheet Size (W") 5.5 - 9
Product Description:

Features of Formax FD 7104 Standard 1F Folder & Inserter
  • One high capacity sheet feeder capable of 1000 sheet feeder
  • Flexibility to add up to 8 modules with 17 feed station as required

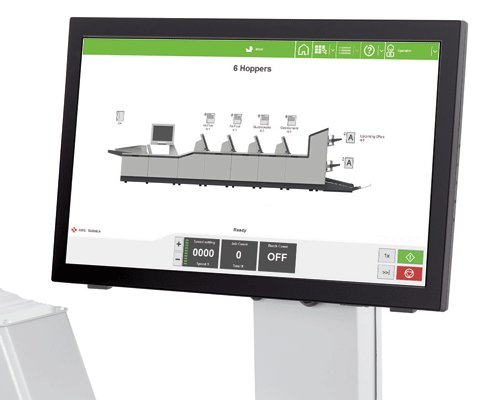

  • 22” color touchscreen control panel enables simple and easy use
  • High volume processes up to 4500 envelope pieces in an hour
  • Able to store unlimited programmable jobs for frequent and instant use
  • Fast and strong folding capacity of 8 sheets at a time
  • Feeder capacity of standard 500 sheets each and high capacity with 1000 each

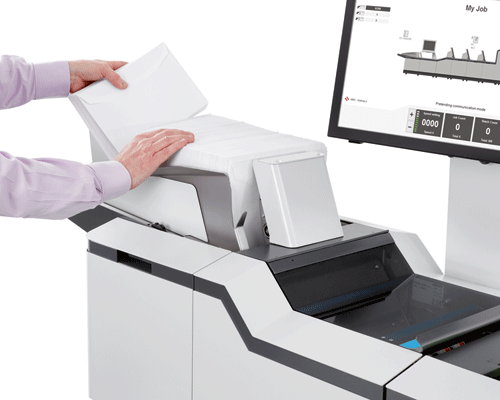

  • Envelope feeder has the capacity to hold up to 800 envelopes
  • Mechanical double document detectors to ensure correct operations
  • Feeders can be linked in cascade mode for continuous operations and maximum output

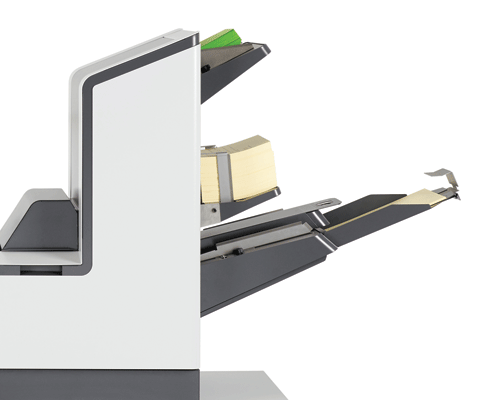

  • High capacity output conveyor holds up to 500 filled envelopes until retrieved
  • Fold types of C, Half, Z, Double Parallel and no fold supported
Performance of Formax FD 7104 Standard 1F Folder & Inserter

If you are looking for a device that can handle your high-volume large office requirement of folding, inserting and sealing then look no where else as the Formax FD 7104 has got your covered. This exclusive robust machine is capable of processing 4500 finished envelopes in an hour and has an incredible monthly duty cycle of 180,000 finished envelopes. The Standard 1F provides flexibility to the users to add up to 8 modules along with 17 feed stations as required. The standard document feeders hold up to 500 sheets and high capacity can hold up to 1000 sheets whereas the Standard 1F is equipped with 1 high capacity feeder.

The Formax FD 7104 makes running recurring jobs easier with its capability to store unlimited jobs. This inserter has an automatic setup and is equipped with a 22” color touchscreen control panel for simple and easy use. Mechanical double document detection ensures security that the correct document is fed. The 7104 Standard 1F supports fold types of C, Half, Z, Double Parallel and no fold and has the powerful folding capacity of 8 sheets at a time. Features custom cabinets on casters for convenience and mobility. Moreover, the Standard 1F automatically measures documents and also supports glossy paper.

Recommendation & Warranty

The Standard 1F of the 7104-inserter series is designed with variety of features that makes this device the ideal upgrade that your workplace needs for its high-volume folding, inserting and sealing requirements. Formax products comes with a 90-day warranty to on parts and labor for customer satisfaction.

Frequently Asked Questions

Q: For how long am I entitled to warranty?

A: The Formax 7104 series comes with a 90-day warranty on parts excluding wearables and labor.

Q: What is a job?

A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.

Q: How many jobs can my 7104 series can save?

A: The 7104 series can save up to unlimited programmable jobs for frequent use.

Q: How much sealing liquid is required for 100,000 envelopes?

A: The 7104 sealing liquid of 10 liters in reservior for 100,000 envelopes.

Q: Does the 7104 series has the capability to feed glossy paper?

 A: Tower Folder and Feeder Folder can feed glossy paper
