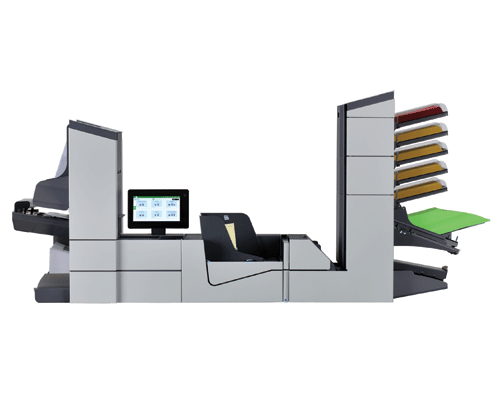

Formax FD 6608 Standard 2 Folder & Inserter
Formax FD 6608 Standard 2 Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6608 Standard 2 Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6608 Standard 2 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6608-Standard 2 |
| Dimensions (H”xW”xD”) | 31” H x 60” W x 18” D |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | Two standard stations with 325 sheet capacity each |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 100 Volts |

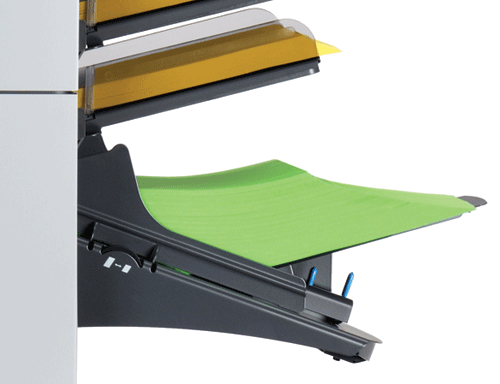

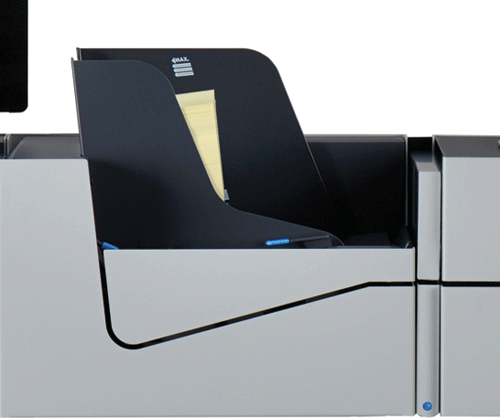

| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Thin Booklet Feeder, Side Exit Tray, OMR, BCR & OCR ,Short Feed Trays, Custom Cabinets and 402 Series Joggers |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5.1 - 9 |
Product Description:
Features of Formax FD 6608 Standard 2 Folder & Inserter
- Configuration option with 2 stations include with 2 standard feeders
- Mid volume processing up to 4,300 pieces per hour and 80,000 pieces monthly
- Capable of saving 50 programmable jobs for frequent and recurring jobs

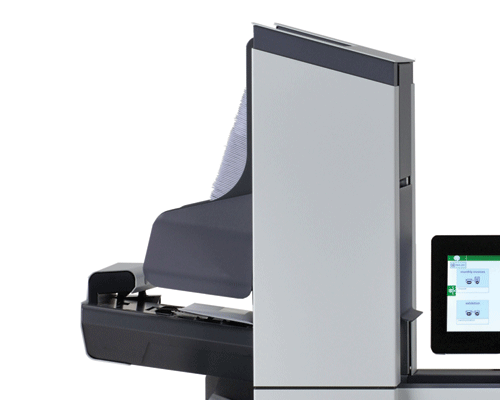

- High capacity vertical output stacker holds up to 500 processed envelopes
- Supported fold types C, Half, Z, Double Parallel and no fold
- Cascade mode link feeders for continuous operations
- Saves energy by going to standby mode after one hour of inactivity
- Double document detection to ensure no repetition of document is fed

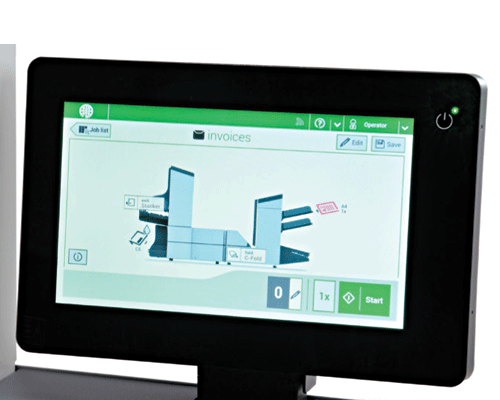

- 10-inch interactive touchscreen with graphic icons for easy use
- Paper and envelope sensors help users by indicating which feeders needs refilling
The Formax introduces its FD 6608-inserter series with 10 configurations including the Standard 2. Standard 2 is equipped with 2 standard feeder and each feeder has the capacity to hold 325 sheets each and 650 sheets in total. This inserter is ideal for medium offices that require mid volume solution as it has the processing speed of 4,300 pieces in an hour and possess a monthly duty cycle of 80,000 pieces with ease and efficiency. The multiple feeders can be linked in cascade mode for continuous operations allowing users to refill until the job is complete.
The FD 6608 series are also equipped with a high capacity vertical stacker that holds up to 500 processed envelopes. This robust FD 6608 Standard 2 inserter has the capability to fold 10 sheets in half at one and supports, Half, Z, Double Parallel and no fold. This user-friendly device is equipped with 10” touchscreen control panel for easy setup and AutoSetTM loads load envelopes and papers and adjust automatically. Detectors assembled in each feeder ensure no double documents are fed into the system. Auto standby mode is enabled if the FD 6608 standard 2 is inactive from an hour.
Recommendation & WarrantyThe FD 6608 Standard 2 is an ideal device for medium traffic of folding and inserting. The inserter is backed with 90-day warranty on parts and wearables and labor for ensuring customer satisfaction and provides with reliability and accuracy to improve workplace productivity.
Frequently Asked Questions
Q: What is the difference in the Formax 6606 series and 6608 series?
A: Formax 6608 series is the replace of the 6606 series and has a new design and a 22” touch screen control panel.
Q: For how long am I entitled to warranty?
A: The Formax 6608 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: How many jobs can my 6608 series can save?
A: The 6608 series can save up to 50 programmable jobs for frequent use.
Q: What is the difference between all the models of the 6608 series?
A: The 6608 series model are designed with the same engine and features the only difference it has is the number and type of feed stations each model have.
