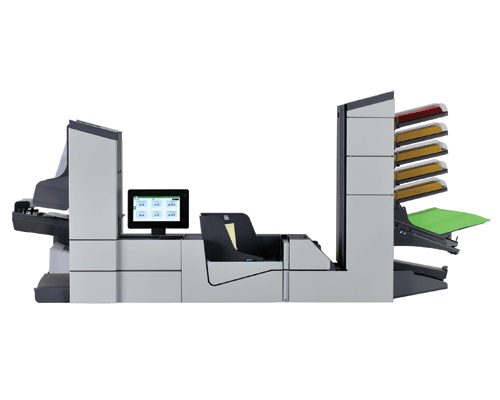

Formax FD 6608 Special 5F Folder & Inserter
Formax FD 6608 Special 5F Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6608 Special 5F Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6608 Special 5F Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6608-Special 5F |
| Dimensions (H”xW”xD”) | 31” H x 60” W x 18” D |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | 2 standard & 2 special feed stations with 325 sheet capacity each and 1 high capacity feed station with 725 sheet capacity |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 100 Volts |

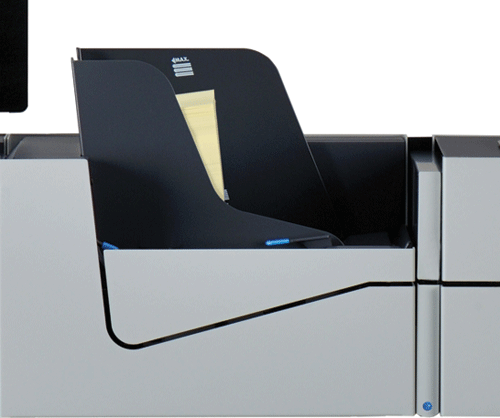

| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Thin Booklet Feeder, Side Exit Tray, OMR, BCR & OCR ,Short Feed Trays, Custom Cabinets and 402 Series Joggers |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5.1 - 9 |
Product Description:
Features of Formax FD 6608 Special 5F Folder & Inserter

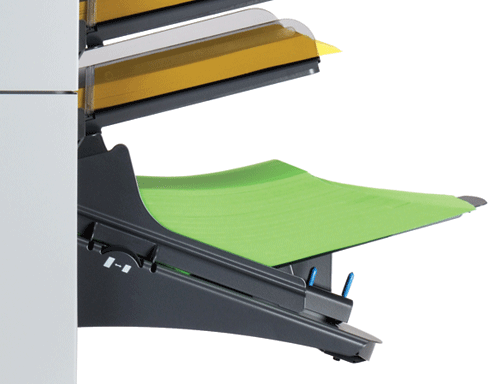

- 5 stations including 2 Special Feeders, 2 Standard Feeders and 1 High-Capacity Feeder
- The special and standard feeders can hold up to 325 sheets and high capacity can hold 725
- The feeders can be linked for continuous processing for maximum result
- Multi feeding features pulls a number of pieces then collate and insert automatically

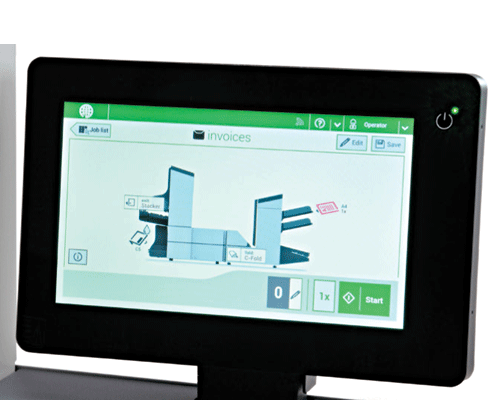

- 10” color touch screen with graphic symbols for simple and easy utilization
- For document security double document detectors are located at the infeed
- Eco mode saves energy by putting inserter into standby if inactive for an hour
- Supported fold types C, Half, Z, Double Parallel and no fold
- Mid volume processing with 4300 processed envelopes in an hour
- 50 programmable can be stored for frequent use and instant requirement
- Daily Mail Mode easily inserts stapled sets providing flexibility
To provide flexibility to the users Formax FD 6608 inserter comes with 10 configurations and among those is the Special 5F inserter. The Special 5F inserter is assembled with 2 special feeders, 2 standard feeders and a high capacity feeder. The Mutli feeders are designed to provide continuous operations, the special feeder and standard feeder has 325 sheet capacity whereas the high capacity feeder can hold up to 725 sheets. The 6608 series have AutoSetTM installed which automatically makes adjustments like paper thickness, paper length, fold type and envelope size whereas this differs for the special feeder it requires manual adjustments.
This inserter is designed for mid volume solutions as it has the processing speed of 4300 pieces and a monthly duty cycle of 80000 pieces. Special 5F is a user-friendly device as it is equipped with variety of features that aids users to process this machine. The color touch screen control makes the functioning and setup really easy and simple. The robust Special 5F can fold 8 sheets in tri-fold and 10 sheets in half fold at once. The eco friendly is enabled if the machine is inactive for an hour.
Recommendation & WarrantyThe Formax FD 6608 Special 5F inserter is backed by 90-day warranty on parts excluding wearables and labor to ensure customer satisfaction. The Special 5F inserter is strong and efficient so that they are the perfect choice for mid volume solution in a work place.
Frequently Asked Questions
Q: What is the difference in the Formax 6606 series and 6608 series?
A: Formax 6608 series is the replace of the 6606 series and has a new design and a 22” touch screen control panel.
Q: For how long am I entitled to warranty?
A: The Formax 6608 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: How many jobs can my 6608 series can save?
A: The 6608 series can save up to 50 programmable jobs for frequent use.
Q: What is the difference between all the models of the 6608 series?
A: The 6608 series model are designed with the same engine and features the only difference it has is the number and type of feed stations each model have.
Video of Formax FD 6608 Special 5F Folder & Inserter
