Formax FD 6608 Special 4 Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6608 Special 4 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6608-Special 4 |
| Dimensions (H”xW”xD”) | 31” H x 60” W x 18” D |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | 2 standard feed stations and 2 special feed stations with 325 sheet capacity each |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 100 Volts |
| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Thin Booklet Feeder, Side Exit Tray, OMR, BCR & OCR ,Short Feed Trays, Custom Cabinets and 402 Series Joggers |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5.1 - 9 |
Product Description:
Features of Formax FD 6608 Special 4 Folder & Inserter
- Four-Station with 2 Standard Feeders and 2 Special Feeders
- Each feeder has the capacity of holding up to 325 sheets each
- Mid volume processing speed of 4300 pieces in just an hour
- The 10” color touchscreen control panel featured for simple and easy use
- AutoSetTM automatically adjusts all settings for quick setup

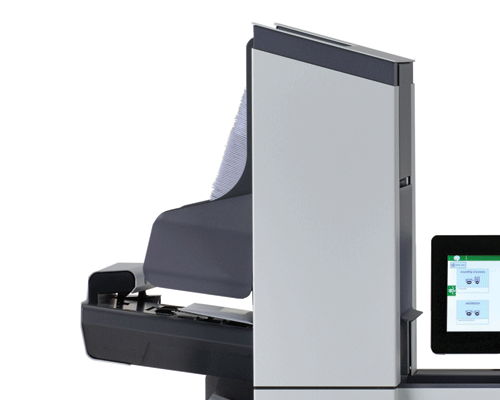

- Holds five hundred processed envelopes in its high vertical output stacker
- Eco mode saves energy by putting inserter into standby if inactive for an hour
- Link feeders for high productivity and continuous operations in cascade mode
- Supported fold types C, Half, Z, Double Parallel and no fold
- 50 recurring programmable jobs can be saved for instant use
- Double document detection to ensure no repetition of document is fed
Among the ten configurations of the Formax FD 6608 inserter series is Special four that includes 2 standard and 2 special feeder stations. The special feeder needs manual adjustments where as the standard feeders has AutoSetTM that automatically sets paper length, paper thickness, fold type, and envelope size. The 6608 is a strong machine with a processing speed of 4300 pieces per hour which results in the boost of productivity in mailing methods. This inserter folds and inserts together that eliminates any manual work required. For frequent use 50 programmable jobs can be saved and used instantly.
To ensure document security the inserter is installed with double document detection which makes sure no repetition of document is fed. This user-friendly machine is assembled with a 10” color touchscreen control panel that makes it very easy to set up and use. AutoSetTM installed which automatically make adjustments whereas this differs for the special feeder it requires manual adjustments. Moreover, Eco friendly feature saves energy by putting the machine on standby when inactive for an hour.
Recommendation & WarrantyThe 6608 Special 4 is an ideal device for medium traffic of folding and inserting. The inserter is backed with 90-day warranty on parts and wearables and labor for ensuring customer satisfaction. To maximize your workplace productivity and minimize mistakes the 6608 Special 4 is the top-notch inserter for you.
Frequently Asked Questions
Q: What is the difference in the Formax 6606 series and 6608 series?
A: Formax 6608 series is the replace of the 6606 series and has a new design and a 22” touch screen control panel.
Q: For how long am I entitled to warranty?
A: The Formax 6608 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: How many jobs can my 6608 series can save?
A: The 6608 series can save up to 50 programmable jobs for frequent use.
Q: What is the difference between all the models of the 6608 series?
A: The 6608 series model are designed with the same engine and features the only difference it has is the number and type of feed stations each model have.
