Formax FD 6406 Special 3F Folder & Inserter
Formax FD 6406 Special 3F Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6406 Special 3F Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6406 Special 3F Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6406-Special 3F |
| Dimensions (H”xW”xD”) | 24.8" x 16.5" x 58.3" |
| Envelope Hopper Capacity (Envelopes) | 325 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4000 |
| Duty Cycle (Pieces/month) | 60,000 |
| Feed Stations w/ Sheet Capacity | 2 Special Feeders and 1 High Capacity Document Feeder with 325 and 725 sheet capacity respectively |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 100 |
| Optional Accessories | Short Feed Trays, Production Feeders, CIS Scanner, OMR, BCR and OCR, Side Exit Tray, Custom Cabinets and 402 Series Joggers |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5.1 - 9 |
Product Description:
Features of FD 6406 Special 3F Folder & Inserter
- Three station configurations with 2 Special Feeders and 1 High Capacity Document Feeder
- The high capacity feeder can hold up to 725 sheets and standard feeder can hold 325 sheets

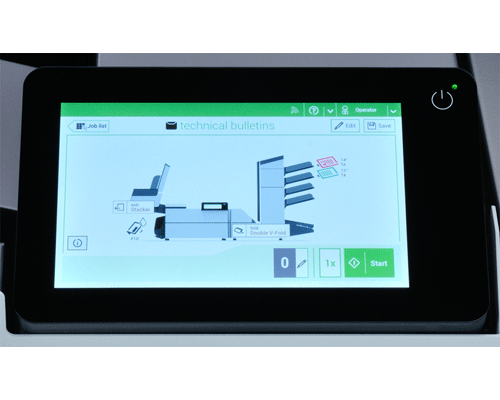

- Mounted with 7” color touchscreen control panel for easy and intuitive use
- Capable of processing 4000 envelopes in an hour with ease and efficiency
- Designed for mid volume traffic of folding and inserting mail
- Eco friendly machine goes into standby mode after 1 hour of inactivity
- Capacity to store 50 programmable jobs that are recurring
- Featured Auto Set senses that sets paper length, fold type, envelope size etc.
- Fold types of C, V, Z, Double Parallel, no fold supported
- 50 programmable recurring job can be stored for instant recall
Performance of FD 6406 Special 3F Folder & Inserter
The FD 6406 Special 3F from the Formax 6406 inserter series is made with advanced technology that folds and inserts together. This compact and strong inserter is capable of processing mid volume mails like 4000 envelopes in an hour and has the monthly cycle of 60000 envelopes. The special 3F has a three-station configuration with two special feeders and a high capacity feeder. The special feeder can hold up to 325 sheets whereas the high capacity feeder can hold up to 725 sheets and it is mounted with a high capacity vertical stacker that can carry 500 forms.
The Formax Special 3F is built to be user friendly as it is equipped with a 7-inch color touchscreen control panel that is easy to use and operate. There are paper and envelope sensors that indicate user on the touch screen if the feeder is empty etc. The double document detection helps making sure that no document is fed twice. AutoSetTM for one-touch setup of new jobs by automatically measuring paper lengths, envelope sizes and fold lengths. The eco-friendly mode is enabled if the 6406 Special 3F is inactive for an hour conserving energy and preserving life of the machine.
Recommendation & Warranty
The 6406 series inserter are made strong and efficient so that they are the perfect choice for mid volume solution in a work place. The Formax FD 6406 Special 3F inserter is backed by 90-day warranty on parts excluding wearables and labor to ensure customer satisfaction.
Frequently Asked Questions
Q: For how long am i entitled to warranty?
A: The Formax 6406 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: How many jobs can my 6406 series can save?
A: The 6406 can save up to 50 programmable jobs for frequent use.
Q: My envelopes are double fed, what should i do?
A: This may happen when the envelopes not placed properly in the hopper. Check and replace if needed.
Q: What fold types are supported by the 6406 series?
A: The fold types supported by the 6406 series is C, Half, Z, Double Parallel and no fold
