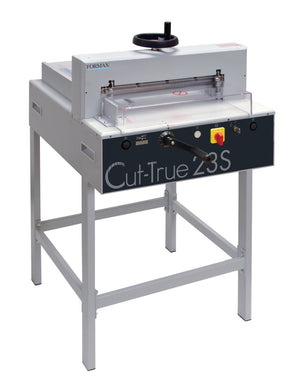

Formax Cut-True 23S Semi-Automatic Guillotine Cutter
Formax Cut-True 23S Semi-Automatic Guillotine Cutter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Spec Sheet: View PDF File
Brochure: View PDF File
Product Specifications
| Manufacturer | Formax |
| SKU | Cut-True 23S |
| Operation | Semi-Automatic |
| Type of cutter | Floor Stand Guillotine |
| Blade Drive | Electric |
| Paper Clamp | Spindle |
| Cutting Width | 16.9" |
| Maximum Paper Stack Height | 1.75" |
| Length Behind Blade | 17" |
| Narrow Cut | 1.89" (35mm) |
| Sheet Capacity | 325 |
| User Type | Commercial |
| Cutting Material | Paper |
| LED Cutting Line | Yes |
| Clamp Style | Spindle-guided clamping wheel |
| Back Gauge Adjustment | Manual crank |
| Cutting Action | Dual-button electric |
| Dimensions | 46.75" H x 24.75" W x 33" D |
| Power Supply | 110V |
| Weight | 198.6 lbs |
| Optional Accessories | 22S-10: Replacement Blade, 15M-20 Replacement Cutting Sticks, pkg of 8 |
| Applications | Print Shops, In-Plant Finishing Operations |
| Safety Feature | Safety lock, Automatic Blade Return, Blade Change Safety Tool, Wooden Paper Push for Safe Alignment |
Product Description:
The Formax Cut-True 23S Semi-Automatic Electric Paper Cutter is built to deliver consistent accuracy and dependable performance in professional print finishing environments. Equipped with a hardened steel guillotine blade and spindle-guided clamping system, it is capable of cutting stacks up to 16.9 inches wide and 1.75 inches high with clean, controlled results. The semi-automatic cutting action reduces operator effort while maintaining precision, making it well suited for short runs and repeat trimming tasks. Manual back gauge adjustment with an LED digital readout allows operators to quickly dial in exact cut positions.
Operational safety and workflow efficiency are integral to the Cut-True 23S design. The electronically controlled two-hand operation and front safety cover help keep hands clear of the cutting area during each cycle. Output accuracy is enhanced by the LED cutting line, which provides clear visual guidance before every cut. Backed with automatic blade return and secure clamping, the Formax Cut-True 23S supports reliable daily use while producing crisp, professional-quality finished documents.
Features of the Formax Cut-True 23S Semi-Automatic Electric Paper Cutter- Spindle-guided clamping system securely holds paper stacks for stable, accurate cuts.
- High-quality hardened steel guillotine blade produces clean, precise cuts over extended use.

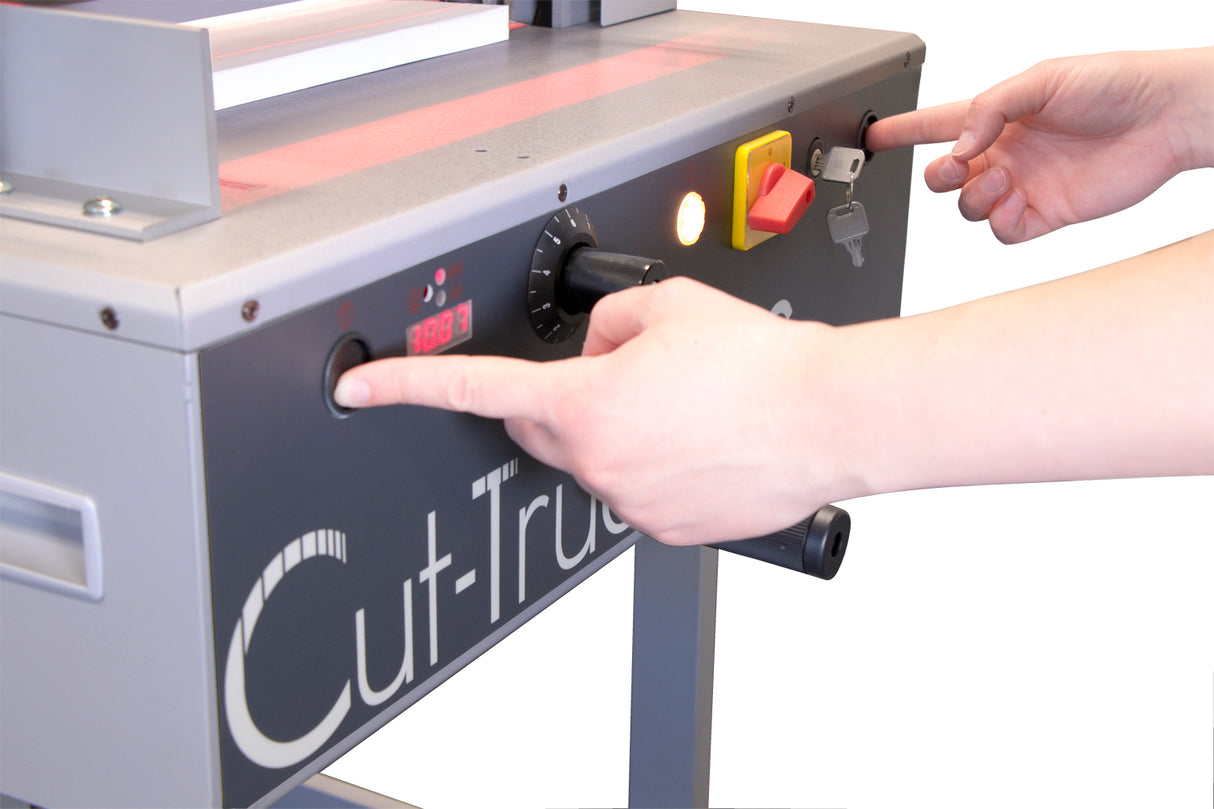

- Electronically controlled two-hand operation safely engages the clamp and blade.

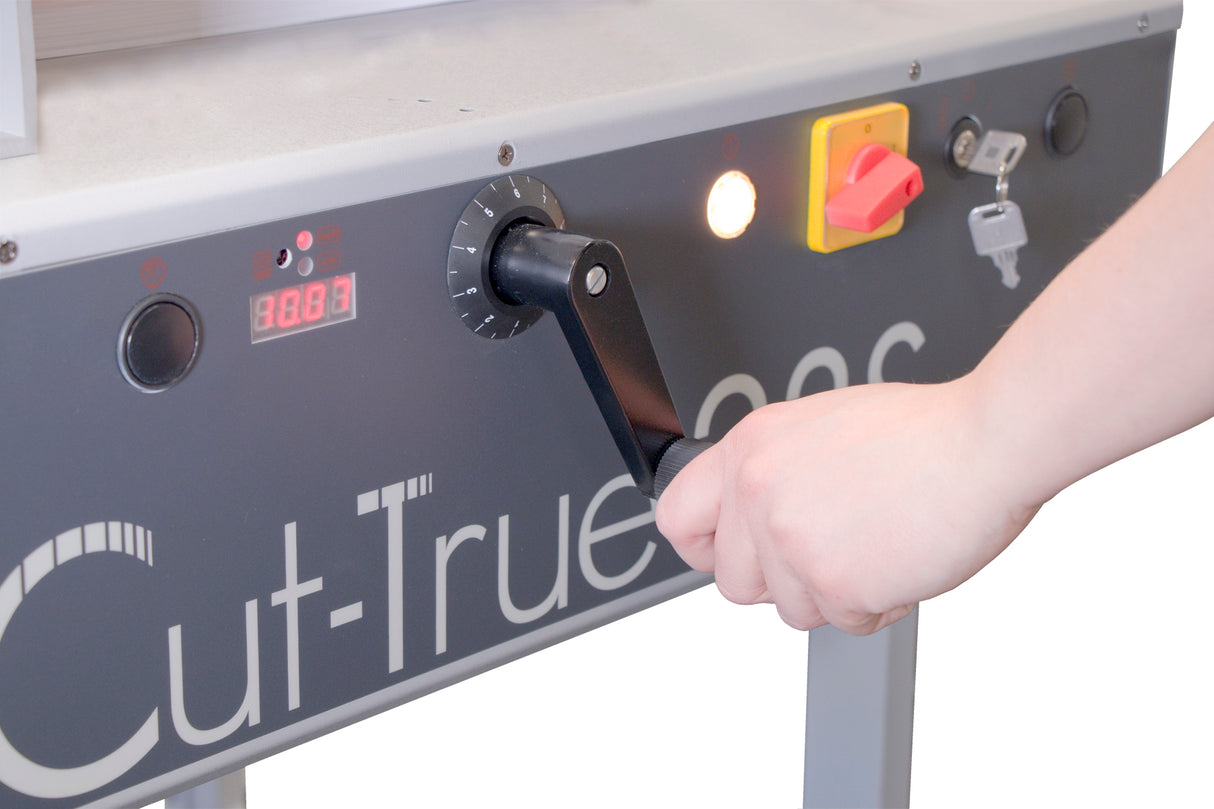

- Manual back gauge with LED digital display allows fine positioning in standard or metric units.
- Automatic blade return from any position improves cycle time and operator efficiency.

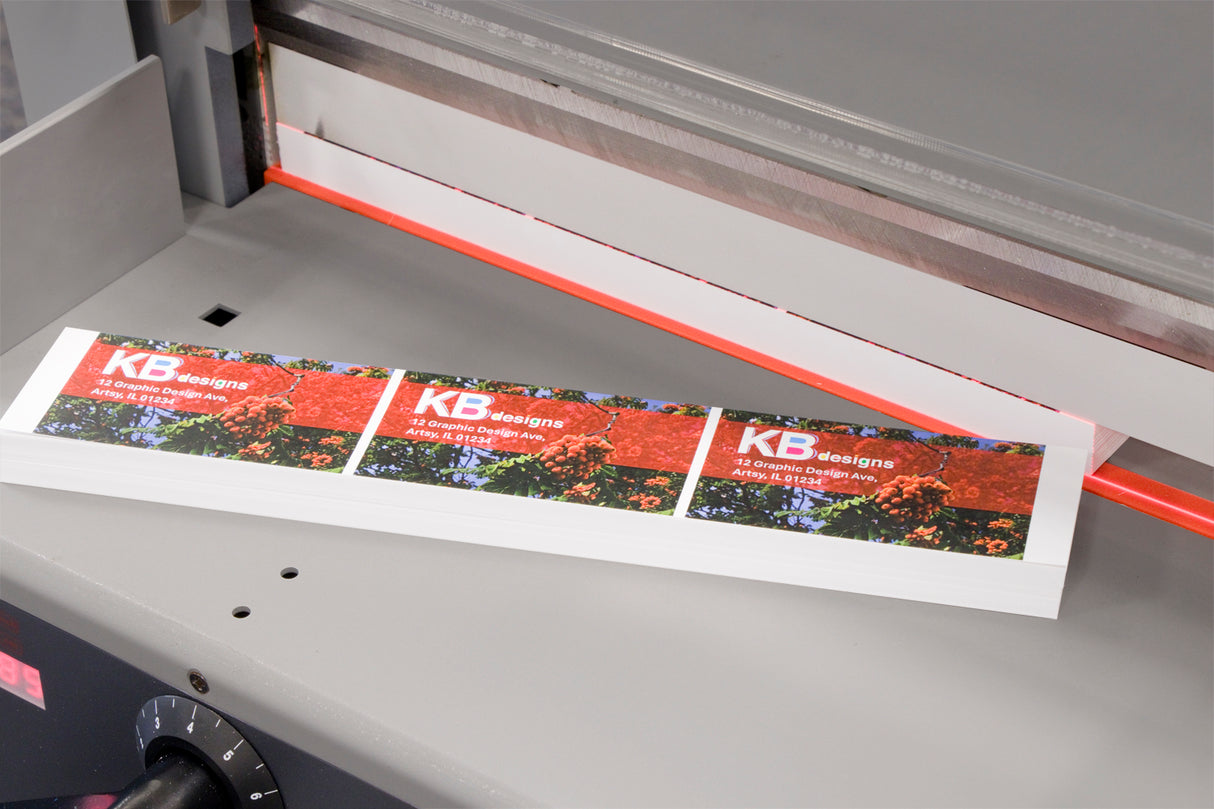

- LED cutting line clearly indicates the cut location for precise alignment.
Frequently Asked Questions
Q: Is the Formax Cut-True 23S fully automatic?
A: No, the Cut-True 23S is a semi-automatic cutter that uses electronic two-hand operation while retaining manual back gauge positioning.
Q: How do I set accurate cut positions on the Formax Cut-True 23S?
A: Cut positions are set using a manual back gauge with an LED digital readout, allowing precise adjustments in standard or metric units.
Q: What types of environments is the Formax Cut-True 23S best suited for?
A: The Cut-True 23S is designed for print shops and in-plant finishing environments that need accurate, dependable cutting for light production work.
