Formax AutoSeal FD 2300 Pressure Sealer
Formax AutoSeal FD 2300 Pressure Sealer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax AutoSeal FD 2300 Pressure Sealer
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax AutoSeal FD 2300 Pressure Sealer |
| Manufacturer | Formax |
| SKU | FD 2300* |
| Dimensions (H”xW”xD”) | 56” H x 30” W x 152” D |
| Hopper Capacity (sheets) | 500 |
| Max. Paper Weight (lbs.) | 24 |
| Type of Pressure Sealer | High-Volume Production Pressure Sealer |
| Function | Seal, Fold |
| Fold Type | Half, Custom Folds, Z, C, Uneven Z |
| Optional Accessories | V-STACK36 Vertical Stacker, Center Slitter & Two-Up Form Kit |
| Applications | Paychecks, Invoices, Tax Forms, Medical Reports, Bills, Coupons & Notices |
| Anti-Jam System | No |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 208V, three phase |
| User Type | Commercial |
| Sheet Capacity (sheets/hour) | 43000 |
| Operation Type | Automatic |
| Additional Features | Color Touchscreen Control Panel, Integrated Output Conveyor and Interlocks |
Product Description:
Features of Formax FD 2300 Pressure Sealer
- Designed to handle highest volume of pressure sealing tasks
- High end pressure that process 43000 forms per hour with ease

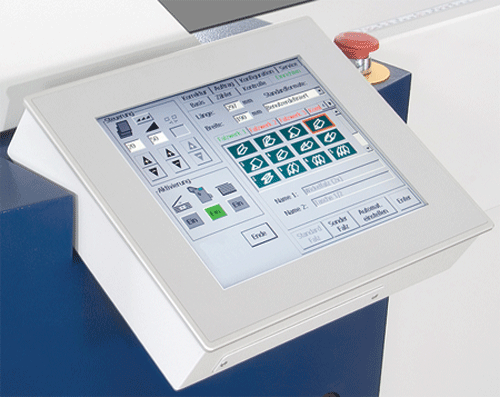

- Interactive touch screen control panel enables easy use
- Capable of processing documents up to 25” long and 11.5” wide

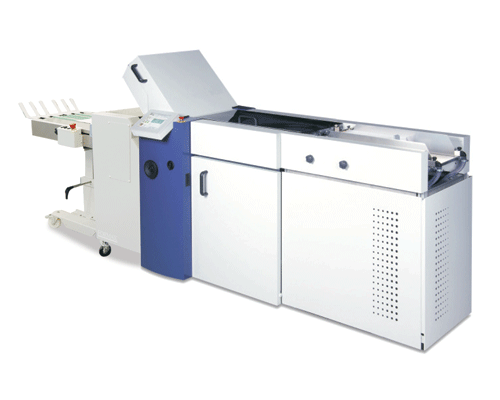

- Utilized air feed system with the capacity of 500 forms
- 200 jobs can be easily programmed and stored
- Pre set 20 folds for easier and rapid operations
- Fold types of Z, uneven Z, C, Half and custom folds.
- Fully automated functions carried out for easier operations
Performance of Formax FD 2300 Pressure Sealer
The 2300 series of Formax introduces its high capacity pressure sealer FD 2300. This high-volume pressure sealer is designed to carry out the highest volume of pressure sealing mails forms with ease and efficiency. The FD 2300 features incredible speed that process 43000 forms that are up to 11.5” wide and 25” long in an hour. This user-friendly device is equipped with color touch screen control panel that allows interactive operations and has fully automated settings like feeder, alignment rails, fold plate stops, deflectors and fold rollers, and delivery rollers. Fold types of Z, uneven Z, C, Half and custom folds are supported.
Formax FD 2300 is inclusive of air feed system that has the capacity of feeding 500 forms at once and has the ability to program up to 200 jobs that can be easily stored. This device is mounted with heavy duty rollers that produces fast and accurate folds. Included with the pre marked 20 folds that makes processing quick and easy. This FD 2300 also features conveyor with photo for neat stacking, interlocks for fault detection, combination rollers for durability and insulated fold plate for noise less operations.
Recommendation and Warranty
This automated pressure sealer is designed to provide easier operations with accurate processing. Formax FD 2300 is backed by a 90-day labor and parts warranty to ensure customer satisfaction. The FD 2300 provides top notch results with its highly efficient processing ability and produces a secure product ready to mail.
Frequently Asked Questions
Q: What are the sizes of the pre-marked standard folds for sealing?
A: The standard folds for FD 2300 can be 11.5” wide and 25” long form sizes and can easily be adjusted for custom as well.
Q: What is the difference in all of the 2300 series products?
A: The difference in the products of the 2300 series each product has a different feed system and hopper capacity.
Q: What does the photo eye do with the 2300 series?
A: The photo eye with the conveyor allows for neat and sequential stacking of processed forms.
Q: For how long am I entitled to warranty?
A: Formax 2300 series comes with a 90-day warranty on parts and labor excluding wearables.
Video of Formax AutoSeal FD 2300 Pressure Sealer
