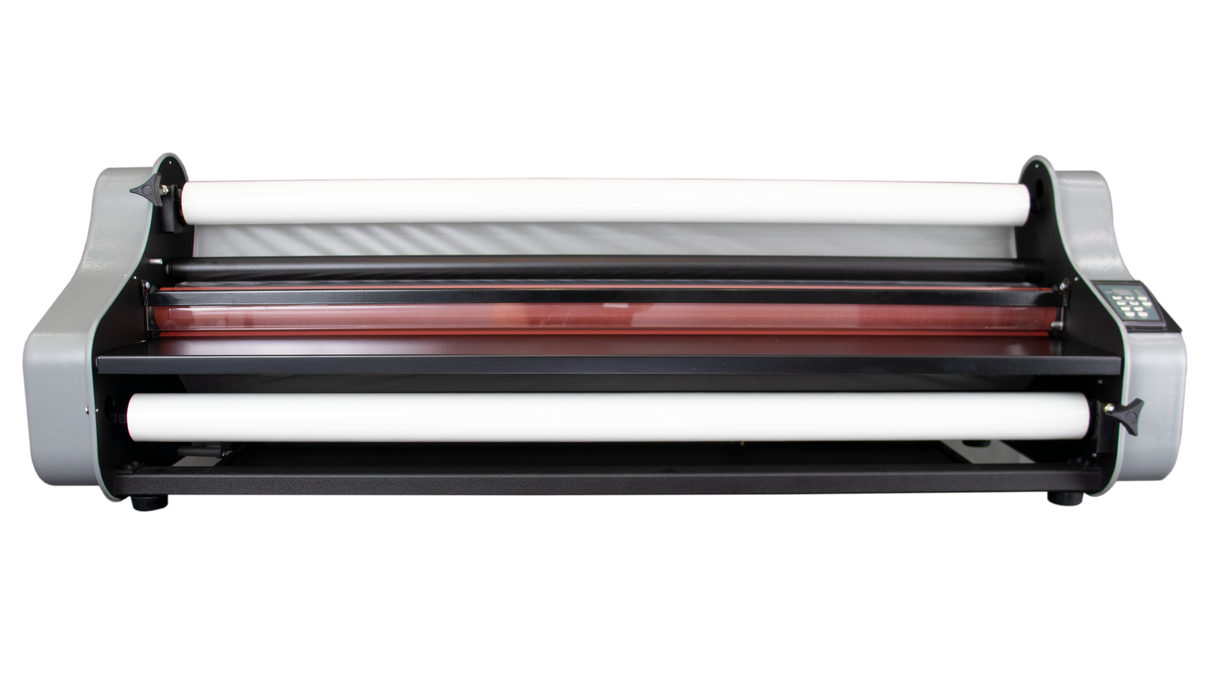

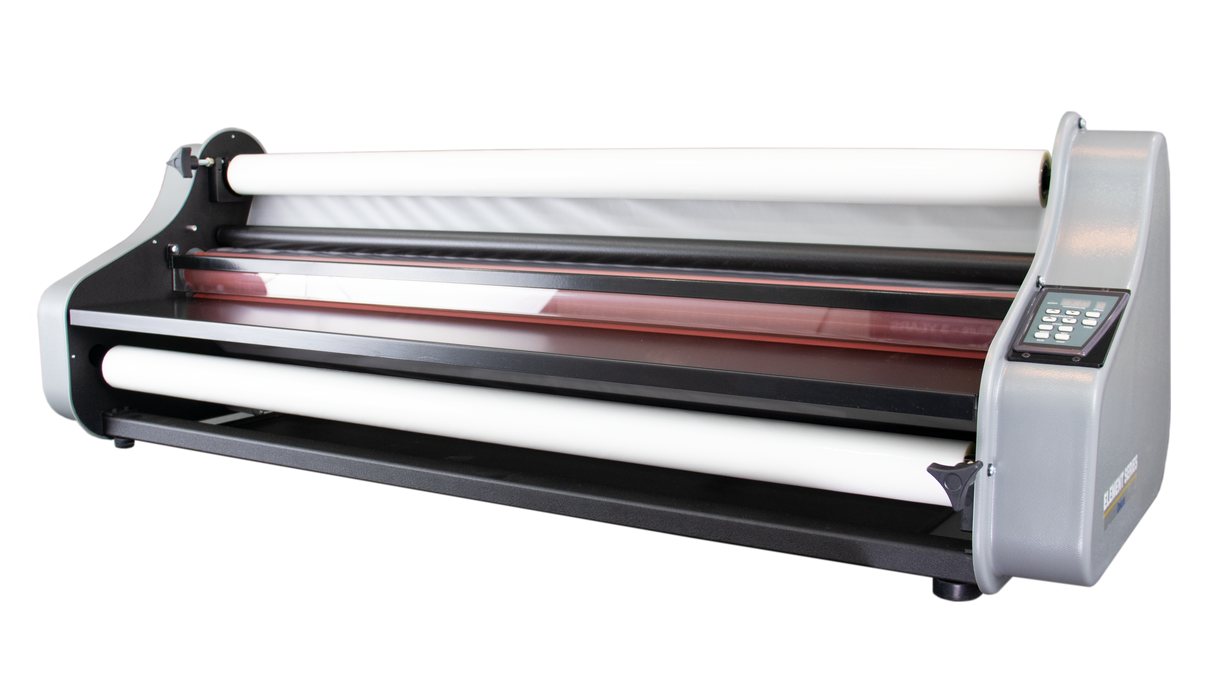

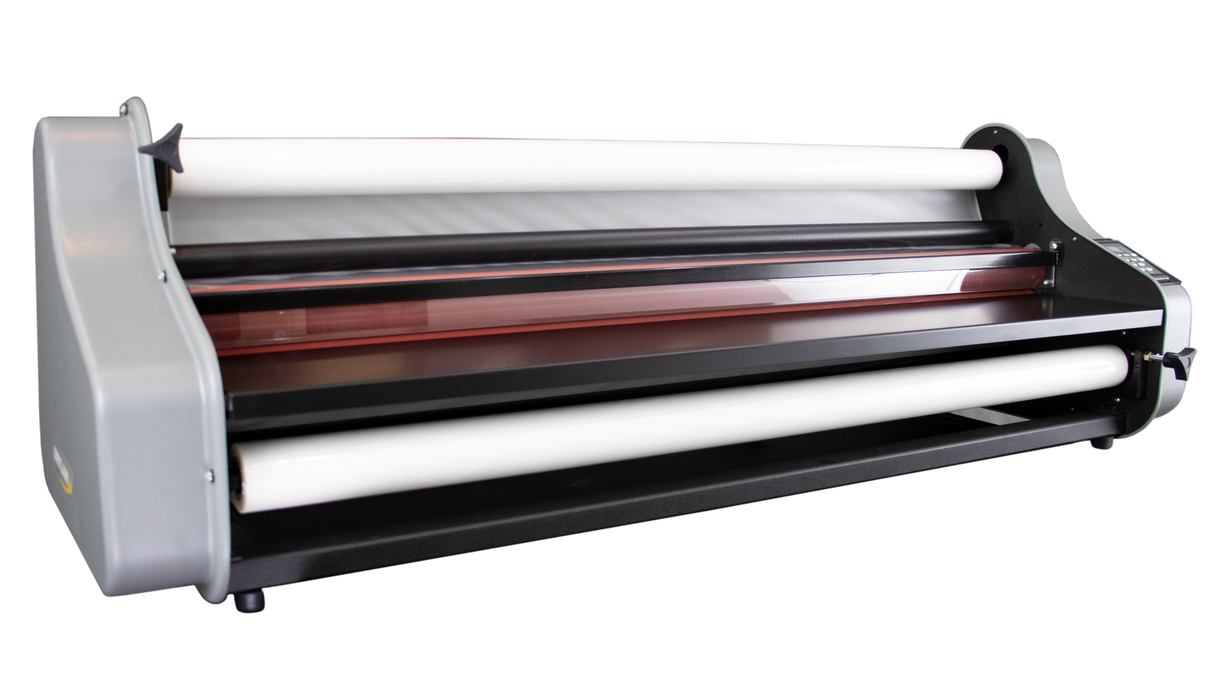

Dry Lam CL-40SD - 40” Standard Element Laminator
Dry Lam CL-40SD - 40” Standard Element Laminator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Click here to find more Laminating Supplies & Accessories for Martin Yale Dry Lam
Dry Lam CL-40SD - 40” Standard Element Laminator
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Laminating Thickness | 3/16 inch |
| Laminating Width | 40 inch |
| Benchmark Speed | 3 ft/min |
| Film Thickness | 1.5 - 3 mil |
| Core Size | 1 inch |
| Heat Type | Heated Rollers |
| Temperature Range | 230 - 280 °F |
| Warm-up Time | 12 minutes |
| Power Supply | 120 V, 60 Hz, 12 A |
| Voltage | 1400 W |
| Dimensions | 48.5 x 15.5 x 19 inch |
| Weight | 110 lbs |
Product Description:
Features of the Dry-Lam CL-40SD Standard Element Laminator
- 40 inch maximum laminating width for wide format graphics and display materials
- Fixed laminating speed of 3 feet per minute for controlled, consistent output
- Compatible with 1.5 to 3 mil roll laminating film on a 1 inch core
- Heated roller system for smooth thermal lamination
- Temperature range of 230 to 280 degrees Fahrenheit with adjustable control
- Digital LED display for clear temperature monitoring
- Integrated safety shield with automatic shut off after 2 hours
- Designed for light duty professional use in schools, offices, and print environments
The Dry-Lam CL-40SD Standard Element Laminator is built for wide format lamination in schools, offices, and production settings that require dependable results. Equipped with a 40 inch laminating width and operating at a fixed speed of 3 feet per minute, it provides steady processing for posters, presentations, signage, and display graphics. The heated roller system maintains a temperature range of 230 to 280 degrees Fahrenheit, supporting consistent adhesion across a variety of materials. Compatible with 1.5 to 3 mil film on a 1 inch core, the Dry-Lam CL-40SD delivers professional quality roll lamination for everyday applications.
The Dry-Lam CL-40SD Standard Element Laminator is backed with practical control and safety features that enhance user confidence. An integrated digital LED display allows operators to monitor and manage temperature settings for precise lamination. The built in safety shield protects heated components during operation, while the automatic shut off after 2 hours supports safe, energy conscious use. With its wide format capacity and straightforward controls, the Dry-Lam CL-40SD offers reliable performance for consistent document and graphic finishing.
Frequently Asked Questions
Q: What types of large-format projects is the Dry-Lam CL-40SD Standard Element Laminator ideal for?
A: The Dry-Lam CL-40SD Standard Element Laminator is well suited for posters, banners, presentation graphics, and display materials. Its wide-format design supports professional finishing in schools, offices, and light production settings.
Q: Is the Dry-Lam CL-40SD a good fit for light professional use?
A: Yes, the Dry-Lam CL-40SD Standard Element Laminator is designed for light-duty professional environments. It provides steady, controlled lamination for consistent day-to-day output.
Q: Can the Dry-Lam CL-40SD run standard roll laminating film?
A: The Dry-Lam CL-40SD Standard Element Laminator is compatible with common roll laminating films used in educational and office environments. This makes sourcing supplies straightforward.
Q: Is temperature easy to monitor during operation on the Dry-Lam CL-40SD?
A: Yes, the Dry-Lam CL-40SD Standard Element Laminator includes a digital LED display for monitoring temperature. This helps users maintain consistent lamination quality.
Q: Does the Dry-Lam CL-40SD include safety features for shared workspaces?
A: The Dry-Lam CL-40SD Standard Element Laminator features an integrated safety shield and automatic shut-off. These additions support safer operation in schools and office environments.
