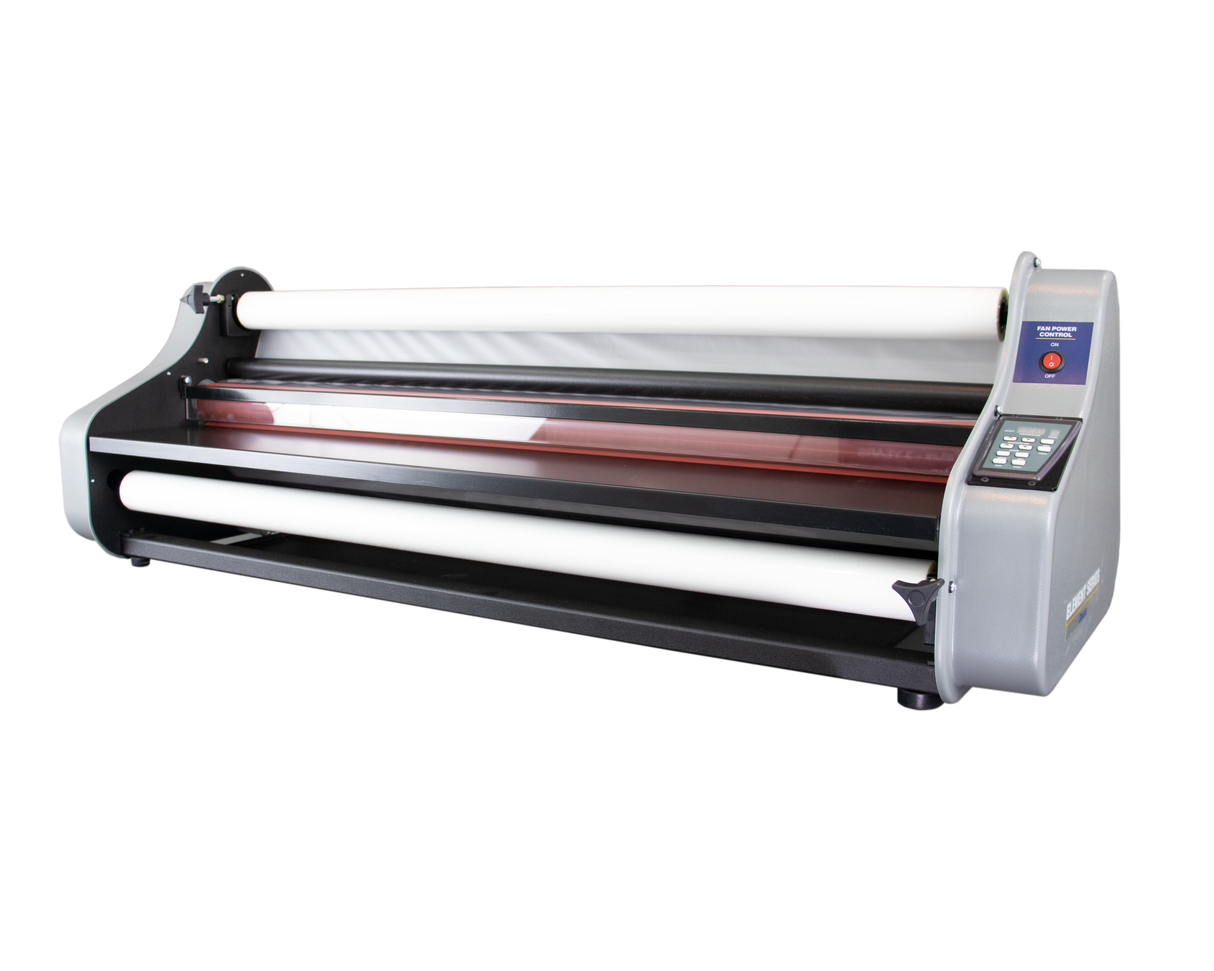

Dry Lam CL-40PR - 40” Professional Element Laminator
Dry Lam CL-40PR - 40” Professional Element Laminator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Click here to find more Laminating Supplies & Accessories for Martin Yale Dry Lam
Dry Lam CL-40PR - 40” Professional Element Laminator
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Laminating Thickness | 3/16 inch |
| Laminating Width | 40 inch |
| Benchmark Speed | 9 ft/min |
| Film Thickness | 1.5 - 10 mil |
| Core Size | 1 and 3 inch |
| Heat Type | Heated Rollers |
| Temperature Range | 230 - 280 °F |
| Warm-up Time | 12 minutes |
| Power Supply | 120 V, 60 Hz, 12 A |
| Voltage | 1400 W |
| Dimensions | 48.5 x 15.5 x 22 inch |
| Weight | 130 lb |
Product Description:
Features of the Dry-Lam CL-40PR Professional Element Laminator
- 40 inch maximum laminating width for professional wide format finishing
- Variable speed operation up to 9 feet per minute for production efficiency
- Compatible with 1.5 to 10 mil roll laminating film in gloss and matte finishes
- Supports 1 inch or 3 inch film core sizes for flexible mounting
- Heated roller system with temperature range of 230 to 280 degrees Fahrenheit
- Built in horizontal trimmer for precise edge cutting
- Digital LED display with automatic shut off after 2 hours
- Integrated cooling fans and safety shield for consistent, safe operation
The Dry-Lam CL-40PR Professional Element Laminator is engineered for high volume wide format lamination in offices, schools, and commercial print environments. Equipped with a 40 inch laminating width and variable speed up to 9 feet per minute, it supports efficient production of posters, signage, presentations, and display graphics. The heated roller system operates within a 230 to 280 degree Fahrenheit temperature range, allowing operators to adjust heat settings based on media type and film thickness for consistent adhesion. Compatible with 1.5 to 10 mil film in both gloss and matte finishes, the Dry-Lam CL-40PR delivers professional grade results across a broad range of applications.
The Dry-Lam CL-40PR Professional Element Laminator is backed with integrated finishing and control features that streamline workflow. A built in horizontal trimmer allows clean, accurate edge finishing directly at the machine, reducing secondary cutting steps. The digital LED display provides clear temperature monitoring, while automatic shut off after 2 hours enhances operational safety. Integrated cooling fans and a safety shield support consistent laminate quality during extended runs, making the Dry-Lam CL-40PR a dependable solution for demanding roll lamination projects.
Frequently Asked Questions
Q: What types of wide-format projects is the Dry-Lam CL-40PR Professional Element Laminator designed for?
A: The Dry-Lam CL-40PR Professional Element Laminator is built for high-volume posters, signage, presentation boards, and commercial display graphics in print shops, schools, and production environments.
Q: Can the Dry-Lam CL-40PR handle heavy-duty or specialty laminating film?
A: Yes, the Dry-Lam CL-40PR Professional Element Laminator supports roll film up to 10 mil in gloss or matte finishes, allowing durable, long-lasting laminated graphics.
Q: Does the Dry-Lam CL-40PR work with different roll core sizes?
A: The Dry-Lam CL-40PR Professional Element Laminator is compatible with both 1-inch and 3-inch film cores, offering flexibility for professional supply setups.
Q: How does the Dry-Lam CL-40PR maintain quality during extended production runs?
A: The Dry-Lam CL-40PR Professional Element Laminator includes integrated cooling fans and heated rollers to help maintain consistent laminate finish during longer jobs.
Q: Does the Dry-Lam CL-40PR reduce post-lamination finishing time?
A: Yes, the Dry-Lam CL-40PR Professional Element Laminator features a built-in horizontal trimmer, allowing clean edge cutting directly at the machine to streamline workflow.
