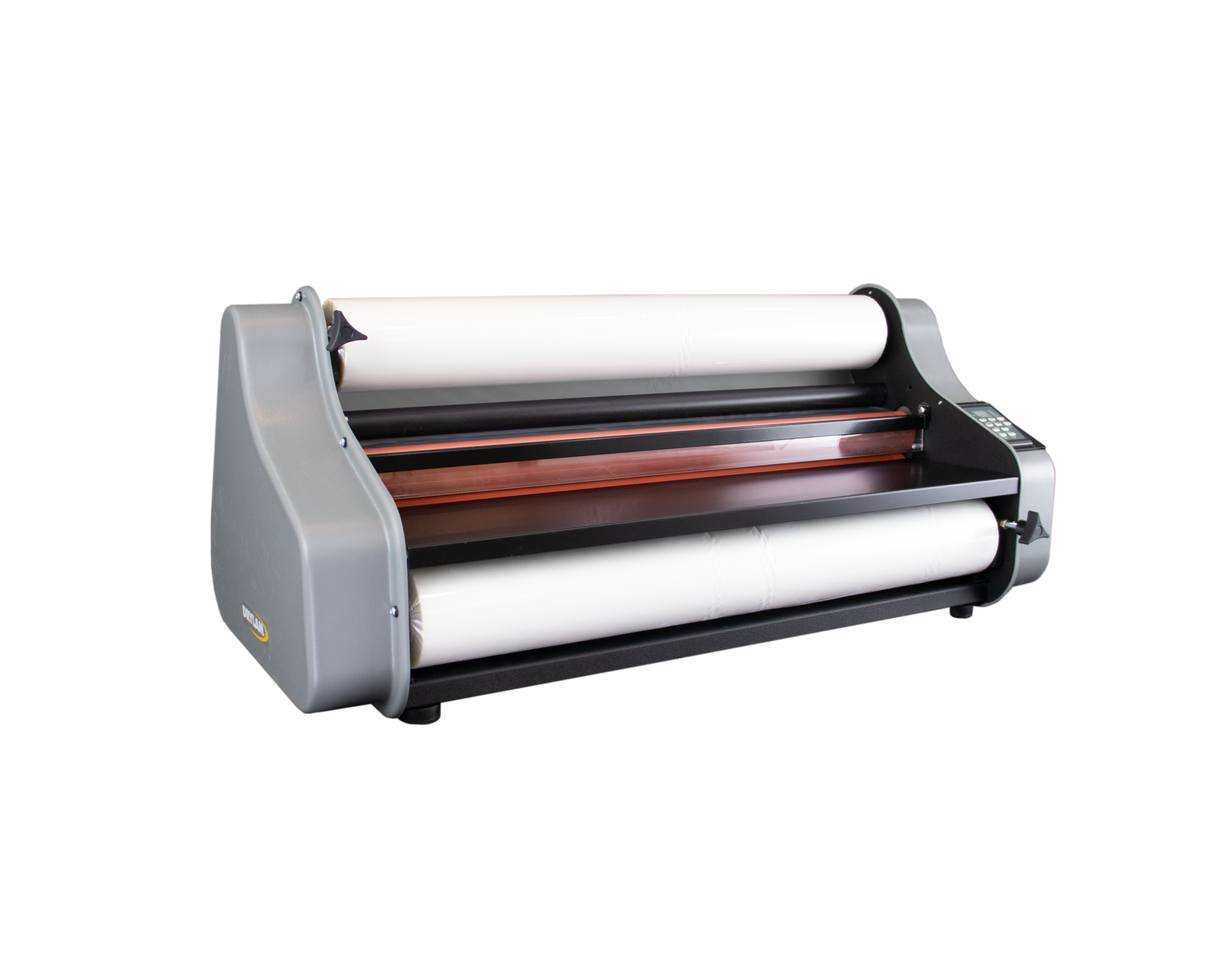

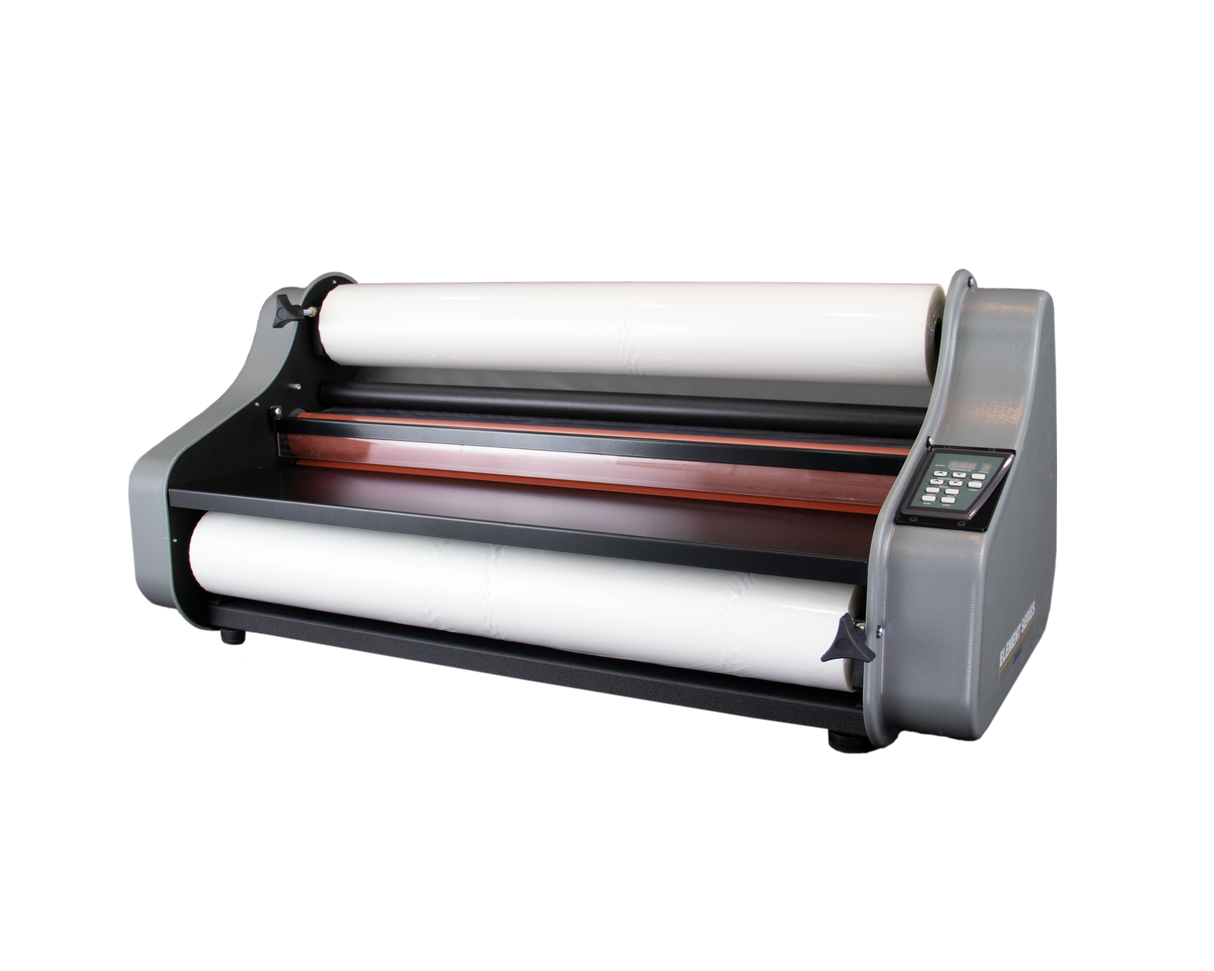

Dry Lam CL-27SD - 27” Standard Element Laminator
Dry Lam CL-27SD - 27” Standard Element Laminator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Click here to find more Laminating Supplies & Accessories for Martin Yale Dry Lam
Dry Lam CL-27SD - 27” Standard Element Laminator
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Laminating Thickness | 3/16 inch |
| Laminating Width | 27 inch |
| Benchmark Speed | 3 ft/min |
| Film Thickness | 1.5 - 3 mil |
| Core Size | 1 inch |
| Heat Type | Heated Rollers |
| Temperature Range | 230 - 280 °F |
| Warm-up Time | 12 minutes |
| Power Supply | 120 V, 60 Hz, 12 A |
| Voltage | 1400 W |
| Dimensions | 35.25 x 15.5 x 17.75 inch |
| Weight | 68 lb |
Product Description:
Features of the Dry-Lam CL-27SD Standard Element Laminator
- 27 inch maximum laminating width for wide format documents and graphics
- Fixed laminating speed of 3 feet per minute for controlled output
- Compatible with 1.5 to 3 mil roll laminating film on a 1 inch core
- Heated roller system for consistent thermal lamination
- Temperature range of 230 to 280 degrees Fahrenheit for precise heat control
- Digital LED display for clear temperature monitoring
- Integrated safety shield with automatic shut off after 2 hours
- Designed for light duty use in schools, offices, and home environments
The Dry-Lam CL-27SD is built for light duty wide format lamination in schools, offices, and home workspaces. Equipped with a 27 inch laminating width and operating at a fixed speed of 3 feet per minute, it provides steady, controlled processing for posters, teaching materials, signage, and display graphics. The heated roller system maintains a temperature range of 230 to 280 degrees Fahrenheit to deliver consistent adhesion and a professional finish. Compatible with 1.5 to 3 mil film on a 1 inch core, the Dry-Lam CL-27SD supports everyday roll laminating applications.
The Dry-Lam Standard Element Laminator is backed with practical safety and usability features to support reliable operation. A digital LED display allows operators to monitor temperature settings for accurate control, while the integrated safety shield protects heated components during use. An automatic shut off after 2 hours enhances operational safety and energy management. With its compact wide format design and straightforward controls, the Dry-Lam CL-27SD offers dependable performance for consistent document finishing.
Frequently Asked Questions
Q: Is the Dry-Lam CL-27SD Standard Element Laminator suitable for classroom and school use?
A: Yes, the Dry-Lam CL-27SD Standard Element Laminator is designed for light-duty environments such as schools and offices. It provides reliable wide-format lamination for posters, teaching aids, and display materials.
Q: Can the Dry-Lam CL-27SD handle everyday roll laminating jobs?
A: The Dry-Lam CL-27SD Standard Element Laminator is built for routine roll lamination using standard film types. It works well for frequently updated signage, charts, and visual materials.
Q: Does the Dry-Lam CL-27SD include safety features for busy environments?
A: The Dry-Lam CL-27SD Standard Element Laminator includes a safety shield and automatic shut-off to help protect users in shared workspaces. These features support safer day-to-day operation.
Q: Is the Dry-Lam CL-27SD a good choice for light production needs?
A: The Dry-Lam CL-27SD Standard Element Laminator is intended for light-duty laminating rather than high-volume production. It provides steady, controlled output for consistent finishing results.
