Akiles  |  SKU: AVM

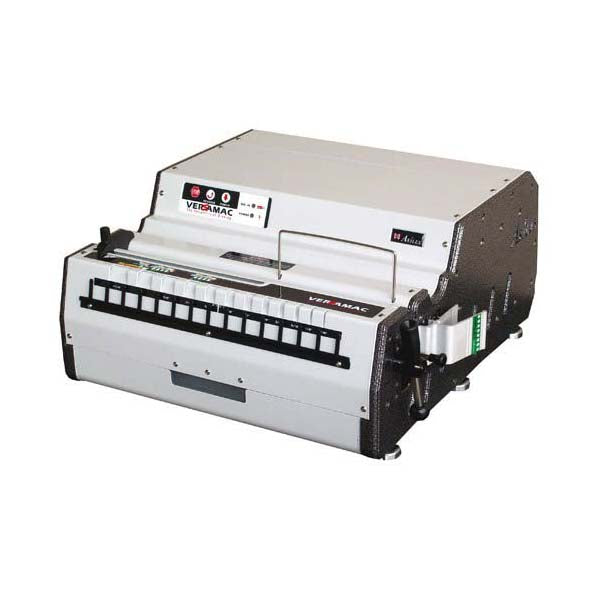

Akiles Versamac Electric Modular Punch System (AVM)

$4,828.85
Comb, Wire, Coil Modular Punch, Interchangeable Die Feature with Fully Disengageable Pins, Compatible with Commercial Volume Workloads

Click here to find more Binding Supplies & Accessories for Akiles

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Akiles Versamac Electric Modular Punch System (AVM)
Manufacturer Akiles
SKU AVM
Dimensions (H”xW”xD”) 10.5 x 18 x 20.5
Punch Length (inches) 14
Paper Punch Volume (lbs.) 20
Category VersaMac Modular Machines
Binding Type Comb Binding, Wire Binding, Coil Binding
Punch Operation Electric
Number of pitches 1
Paper Size All Paper Size
Punch Hole Size (mm) (4 x 5)
Depth Margin Adjustable
Warranty 3-years on machine & 1 Year on die set
Country of Origin Taiwan
User Type Commercial
Closing Mechanism Vertical
Reverse Switch Yes
Waste Drawer Yes
Side Margin Adjustable
Disengageable Pins 54
Punch Hole Shape Oval
Number of Holes 53
Punching Capacity (Sheets) 3-Hole (55) , Coil 4:1 (35) , Wire 3:1 (35) , Wire 2:1 (35) , Comb (35)
Product Description:

  • Akiles Versamac electric punch and binding equipment with a whooping punching capacity of up to 55 sheets of 20lbs. paper per lift

  • Equipped with Induction AC motor (400 W) that can work for hours without heating up

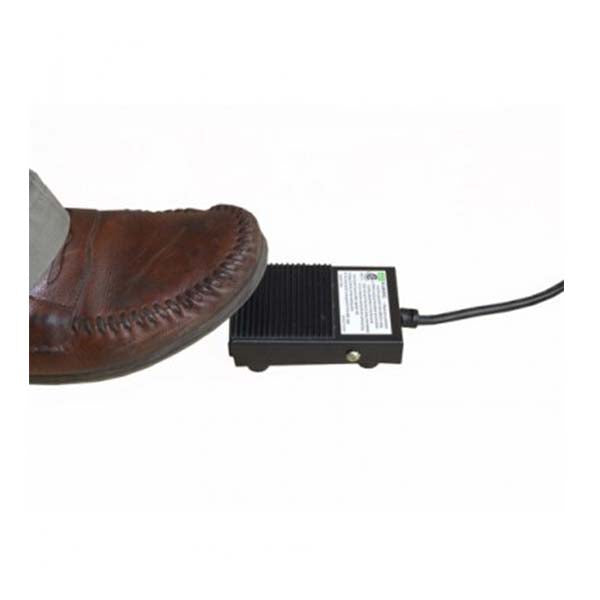

  • Foot Pedal or Manual Punch Operation available for the users who want greater control over their output

  • LED Diagnostic Lights alert the users of various significant happenings during the process

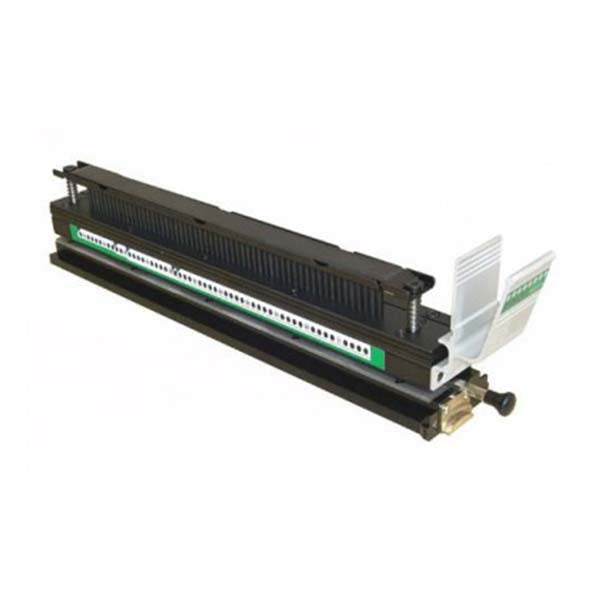

  • Interchangeable Dies that make punching pattern change easy

  • Disengageable Pins allow for more professional punching of various paper sizes

  • Environment-friendly and quiet punching operation for any type of office environment

  • Adjustable Depth Margin and Side Margin Control for neater and refined punch results

  • Height-adjustable Non-Skid Feet for increased flexibility and comfort for the Versamac users

  • A modular and compact design with a complete metal construction

  • Engineered with sophisticated software and technical expertise

  • CE and ISO 9001 certified product

  • 3-year warranty on machine and a 1-year warranty on die set

Akiles Versamac is an innovative variant of the Akiles punching and binding technology. It features an industry-grade Induction AC motor (400 W) that speedily punches up to 55 sheets at a time. It is convenient to set up and use. Its operations are expedited with its modular design and interchangeable dies along with other state-of-the-art features. This Akiles punch & binding machine ensures the highest quality of the output hence is ISO-9001 certified. Its outclass performance can be owed to the CAE that has made this fascinating design a possibility with 1 year warranty.

Frequently Asked Questions

Q1) How many die sets does the machine contain?

A. The Akiles VersaMac contains one standard die but users can purchase 14 different color coded die sets from paper-machines website. As they are being offered at the most affordable prices without compromise on the quality.

Q2) what if the machine gets overfeed or jammed?

A. The Akiles VersaMac contains an automatic anti-jam system which detects such problems and stops the machine immediately to draw back the punching pins.

Q3) Will the machine wear off with time?

A. This punching machine by Akiles is made has all metal construction. If used with care this machine can last more than the expected years.

Video of Akiles Versamac Electric Modular Punch System (AVM)
