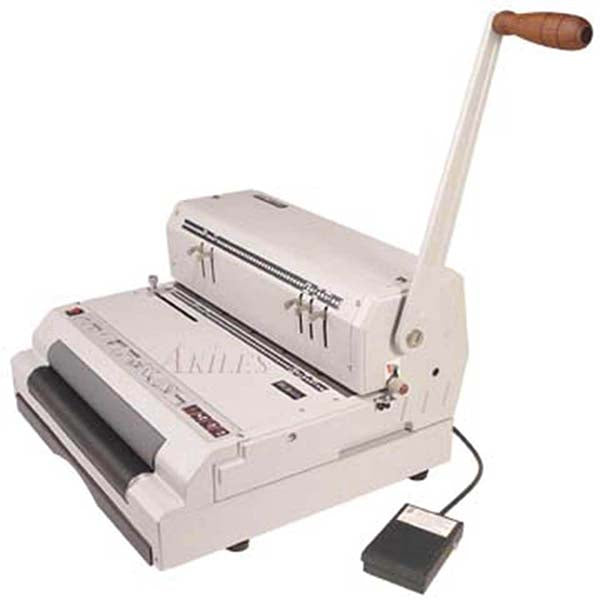

Akiles CoilMac-ECI Electric Coil Binding Machine
Akiles CoilMac-ECI Electric Coil Binding Machine is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Click here to find more Binding Supplies & Accessories for Akiles
Akiles CoilMac-ECI Electric Coil Binding Machine
Brochure View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Akiles CoilMac-ECI Electric Coil Binding Equipment |
| Manufacturer | Akiles |
| SKU | ACM-ECI41 |
| Punch Length (inches) | 11 |
| Punch Pitch | 4:1 |
| Paper Punch Volume (lbs.) | 20 |
| Category | CoilMac |
| Binding Operation | Electric |
| Binding Type | Coil Binding |
| Punch Operation | Manual |
| Binding Capacity (Diameter") | 7/8 |
| Binding Capacity (Sheets) | 230 |
| Number of pitches | 1 |
| Paper Size | A4 Size |
| Punch Hole Size (mm) | 4 |
| Depth Margin | Adjustable |
| Warranty | 1 Year |
| Included Accessories | Coil Crimper, Coil Diameter Selector |
| Country of Origin | Taiwan |
| User Type | Medium Office |
| Closing Mechanism | Vertical |
| Reverse Switch | No |
| Waste Drawer | Yes |
| Side Margin | Adjustable |
| Disengageable Pins | 5 |
| Punch Hole Shape | Round |
| Number of Holes | 43 |
| Punching Capacity (Sheets) | 20 |
Product Description:
- Standard 4mm round holes with a pitch of 4:1 for easy binding
- 5 disengageable pins in the die set for punching several common paper sizes with accuracy
- Electric Coil Inserter and coil crimpers part of the package
- Rugged and easy to use design
The Akiles CoilMac-ECI is one of the finest coil binding products to have embraced the markets. With its leading specifications and innovative features, it definitely is the top in its class and the ideal solution to all coil binding needs in workplaces.
CoilMac-ECI is suited for high volumes of work, owing to its ability to punch to 20 sheets of 20 lbs paper. In addition, it has an extended punching length of 13”, with the punching base being open-ended and accompanied by a continuous punching guide. This facilitative feature allows its users to punch paper sizes up to 26” in length in successive punching cycles.
The punching die integrated in Akiles CoilMac-ECI electric coil binding equipment is a wonder of its own. The perforation die is built with cast-hardened, heat-treated steel that makes it tough and suitable for heavy-duty use. Its precision guiding system ensures an evenly centered, neat punch on paper. Furthermore, 5 of its pins are made disengageable so users can use them adjust for different paper sizes. The holes produced are 4mm round holes set at a standard pitch of 4:1.

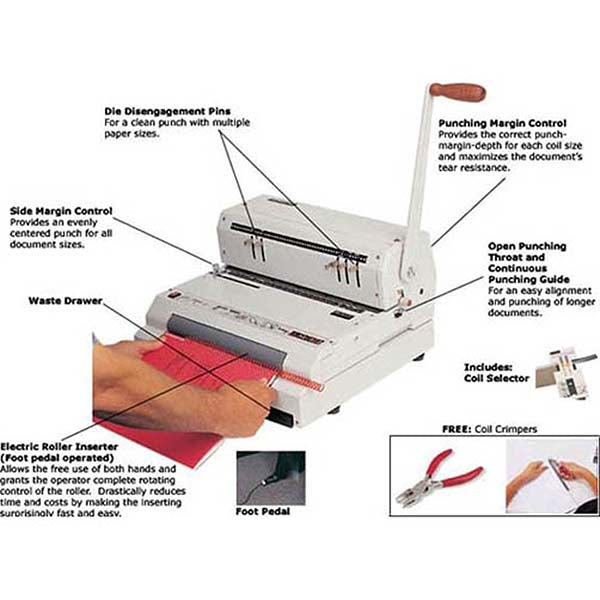

CoilMac-ECI is made to lend professionalism to the documentation it produces. For this reason, Akiles has included helpful guides at various places that ensure perfection. The continuous punching guide comes in handy when a document longer than the punching length is being punched. The side margin control and punching margin control aid in setting the right placement for the punching line according to the document’s dimensions.

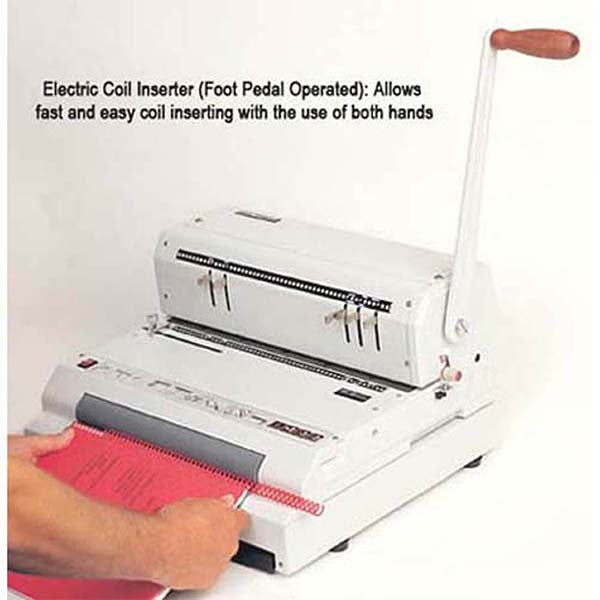

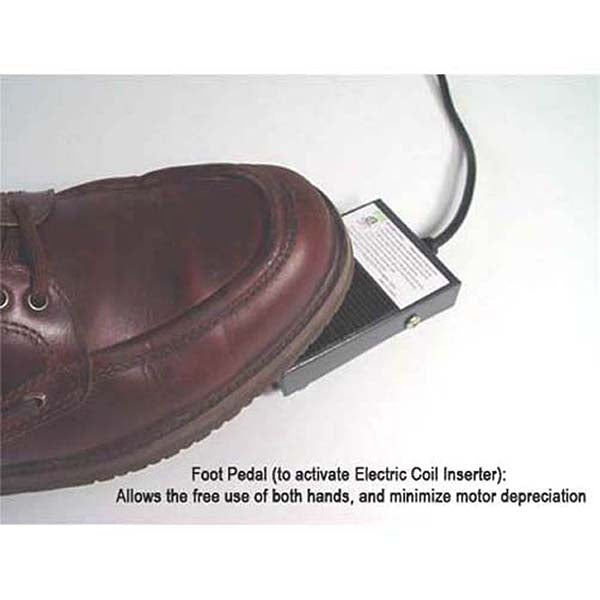

Akiles manual punch & electric coil binding machine also comes incorporated with a durable electric coil inserter. This easy-to-use feature improves coil insertion times by large due to its electrically powered double roller mechanism, which efficiently inserts coils inside punched holes with minimal manual input. These rollers are fit to be used for both plastic and metallic coils, making this machine an all-in-one product.
